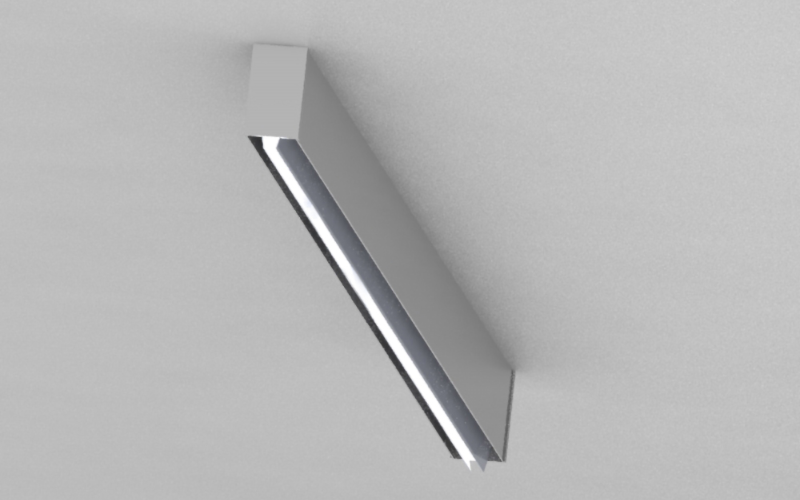

WG-60PTL-ST. ProTools 60 Linear Studio Downlight Suspended / Surface Mount.
Configure
Add to project
RESOURCES
DESCRIPTION
- 45 degree internal louvers and adjustable baffle to finely control beam and cut-off
- Individual fixtures in standard and tailored lengths in suspended or surface mount
- Flicker-free full range dimming with standard driver (eldoLED)
- Manufactured in the USA
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.4"L: 4 Ft6 FT8 FtRun length (Ft)H: 4.5"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K6500K
- CRI90
- Watt(Approx)3 W/Ft6 W/Ft10 W/Ft
- Lumens(Approx)80 Lm/Ft151 Lm/Ft232 Lm/Ft
- OpticsDirectFlood
- Adjustable
- DimmingDim to 1%Dim to <1%DALILutron EcoSystemeldoLED ECO 0-10V
- Controls/NetworkLutron®Casambi
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETL
- EnvironmentDamp
- Mounting TypePendantCeiling Surface
- Housing
- Housing Depth
