Stonco (Genlyte Solutions)

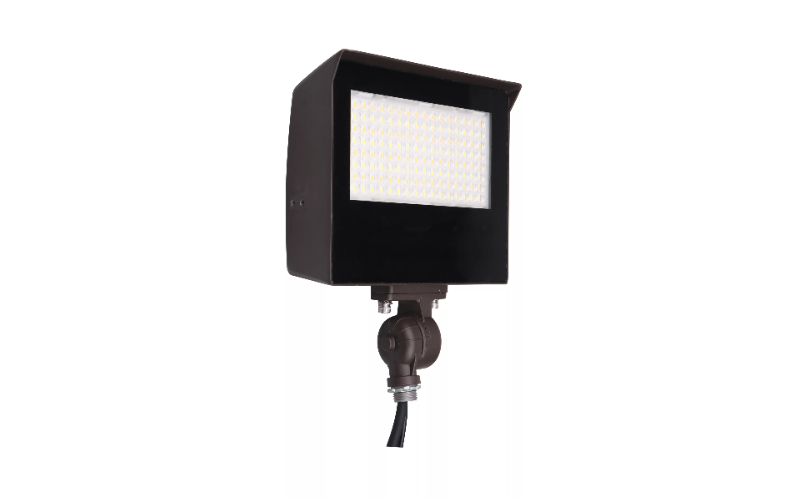

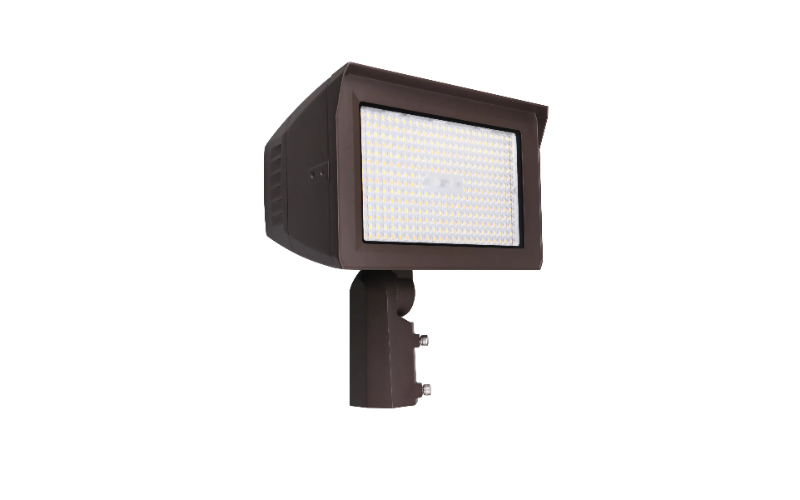

SF20/35/60/80/160/250/300. SlimFlood Selectable GEN3.
Configure
Add to project
RESOURCES
DESCRIPTION
The SlimFlood Selectable Gen 3 offers energy saving LED technology along with field selectable color, beam angle, and wattage. Versatile and stylish with seven different sizes to choose from, provides application flexibility for ground, wall or pole mounting installations, with both included in carton. Ideal for sign lighting, building facades, security lighting, and general purpose floodlighting applications.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.72"2.56"3.43"4.09"7.04"8.87"L: 6.25"7.09"7.72"9.88"11.22"16.67"H: 4.96"5"6.89"7.05"7.33"10.28"10.31"
- Light SourceLED
- CCT/Color3000K4000K5000KField Select CCT
- CRI
- Watt(Approx)10-20 W15-35 W35-60 W60-80 W100-150 W150-300 W190-250 Wswitchable
- Lumens(Approx)1500-2900 Lm2450-5050 Lm5750-9400 Lm9450-12350 Lm15550-22250 Lm24650-45800 Lm30400-38050 Lmswitchable
- OpticsDirectFlood
- AdjustableAdjustable
- DimmingDim to 3-10%0-10V
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277V347V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULDLC*
- EnvironmentIP65
- Mounting TypeTrunnionYokeKnuckleSlip Fitter
- Housing
- Housing Depth
