Spectrum Lighting

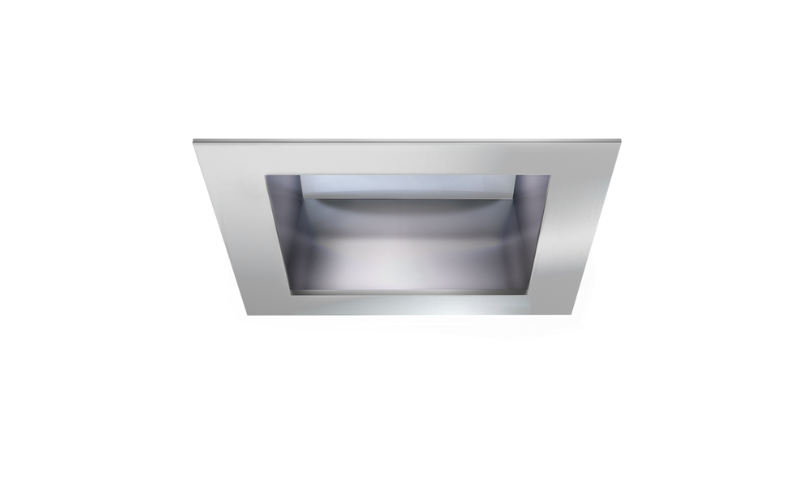

SD6. 6'' Square Downlight, Wall Wash & Adjustable.
Configure
Add to project
RESOURCES
DESCRIPTION
A versatile 6” square aperture recessed LED fixture, offered in downlight, accent, and wall wash. Available in flanged and flangeless, with a wide range of lumen outputs and optical control options to suit a variety of applications.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 6"L: 6"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 90
- Watt(Approx)6.77 W9.91 W6.85 W9.93 W6.78 W13.78 W13.76 W10.2 W20.41 W27.83 W20.48 W28.11 W20.37 W28.14 W35.34 W34.85 W35.09 W
- Lumens(Approx)660 Lm557 Lm824 Lm996 Lm793 Lm1198 Lm1309 Lm1065 Lm1566 Lm1881 Lm1560 Lm2300 Lm2948 Lm2688 Lm2116 Lm2468 Lm3180 Lm3390 Lm
- OpticsDirectMediumFloodWide FloodAsymmetric/Wash
- AdjustableAdjustable
- DimmingDim to 3-10%Dim to 1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageIntegral120V277V
- Integral EmergencyEM Integral
- Lumen Maintenance
- CertificatesUL/CULMade in USA
- EnvironmentDamp
- Mounting TypeCeiling RecessedT-Grid Ceiling
- HousingNew Construction
- Housing Depth6 3/8 ''6 5/8 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
