Sure-Lites (Cooper Lighting Solutions)

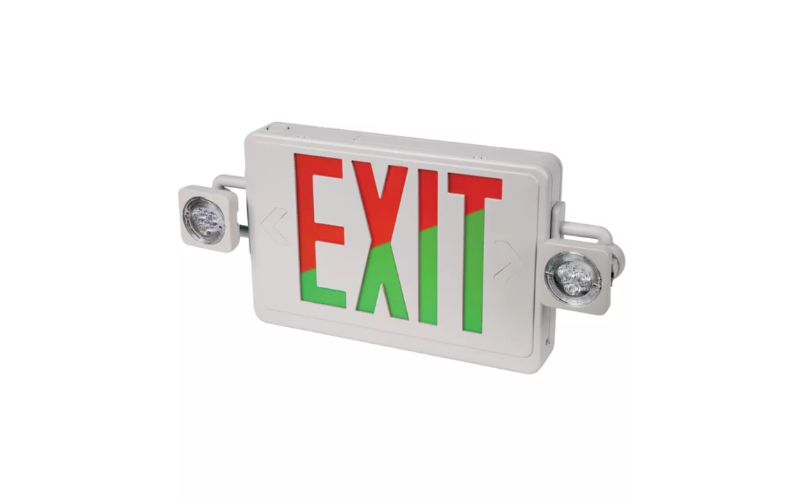

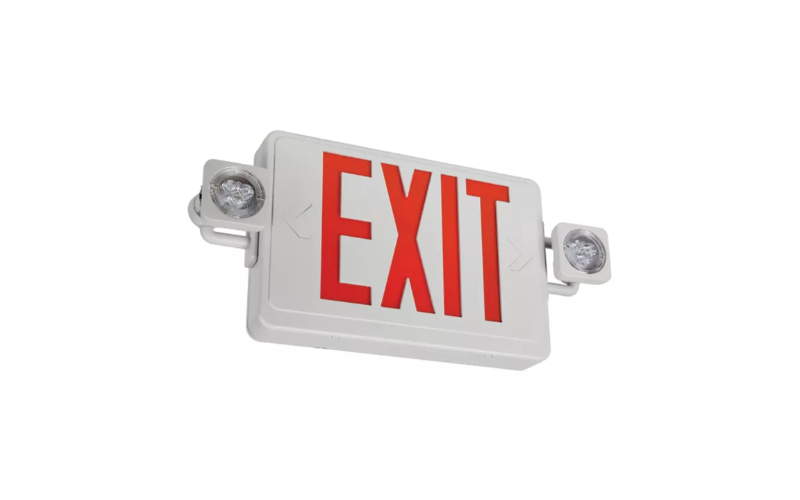

APC7RGSQ30/APCH7RGSQ30. All-Pro Square Headed Combination LED Exit Sign and Emergency Light Thermoplastic Housing with Selectable Red or Green Faces.
 Configure
 Add to project
DESCRIPTION
The new All-Pro APC7RGSQ30 LED red / green selectable combination exit sign and emergency light solves the problem of having to stock multiple exit sign colors for distributors or determining which color is required in the field for contractors. The APC7RGSQ30 will run for a minimum of 90 minutes during a power outage and provides up to 30 feet of egress coverage. Units are supplied with both red and green LEDs and red and green face inserts to provide deep letter colors and illumination uniformity. The APC7RGSQ30's are pre-set to red letters and are easily changed to green letters in the field. Configurable single or double faces, snap-in/snap-out directional chevrons and universal surface ceiling, wall and end mounting make it the APC7RGSQ30 a true universal exit solution for stocking and installation needs. High impact, UV resistant, 5VA flame resistant thermoplastic housings resists discoloration due to age or UV exposure for maximum durability. High powered remote capable models (H series) will power up to two additional APWR emergency LED heads to generate a total of 47 feet of egress coverage. The no maintenance nickel cadmium battery and a 5-year product warranty provide piece of mind for the building owner.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 2 5/16"
    L: 17"
    H: 8"
  • Light Source
    LED
  • CCT/Color
    Field Select CCTRedGreen
  • CRI
  • Watt(Approx)
  • Lumens(Approx)
  • Optics
    DirectDirect ViewSpot
  • Adjustable
    Adjustable
  • Dimming
  • Controls/Network
  • Power/Voltage
    IntegralUNV 120-277V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
  • Certificates
    UL/CUL
  • Environment
    Damp
  • Mounting Type
    Ceiling SurfaceWall Surface
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
