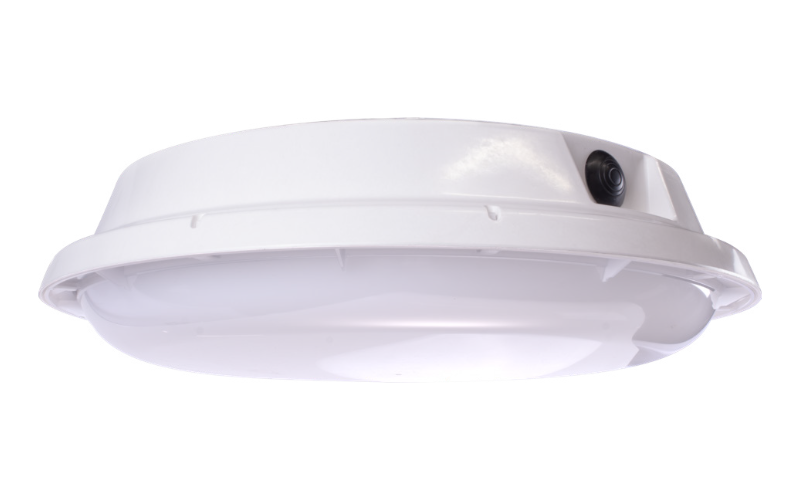

Solas Ray Lighting. SVR. The ROUND VAPOR TIGHT Industrial LED Lighting.

RESOURCES

DESCRIPTION

Weatherproof wide area lighting for wet location and wash-down applications.
Poured in place closed cell polyurethane gasket seals fixture – NO BUGS.
PINSERT™ system uses captive non-metallic snap-in pins to retain lens and provide a solid seal against the fixture housing.
UL 5VA fiberglass enclosure (will not melt or burn).
Chemical/corrosion resistant enclosure.
Occupancy sensor and emergency battery options available.
Acrylic lens option is impact modified and recommended in areas with UV exp.
Polycarbonate lens option is best in extreme temperature and high abuse areas.
Frosted or clear lens options.
0-10 V dimmable.
UL F1 rated (suitable for outdoor use/exposure to ultraviolet light).
Meets UL 746 (suitable for exposure to and immersion of water).
Buy American Act compliant. BABA compliant.

MORE DESCRIPTION

SPECIFICATIONS

Dimensions
W: 17 7/8"
L: 17 7/8"
H: 6 5/16"
Light Source
LED
CCT/Color
3000K3500K4000K5000K
CRI
80
Watt^(Approx)
77 W100 W170 W
Lumens^(Approx)
12000 Lm16000 Lm24000 Lm
Optics
DirectGeneral Diffused
Adjustable

Dimming
Dim to 3-10%0-10V
Controls/Network
Integral Sensor
Power/Voltage
IntegralUNV 120-277VUNC 347-480V
Integral Emergency
EM Integral
Lumen Maintenance
50000 h
Certificates
UL/CULMade in USANSFRoHSBAA
Environment
VaporproofCorrosion ResistantIP69K High-Pressure/Steam-Jet Cleaning
Mounting Type
Pendant
Housing
Housing Depth
