PrentaLux (Cooper Lighting Solutions)

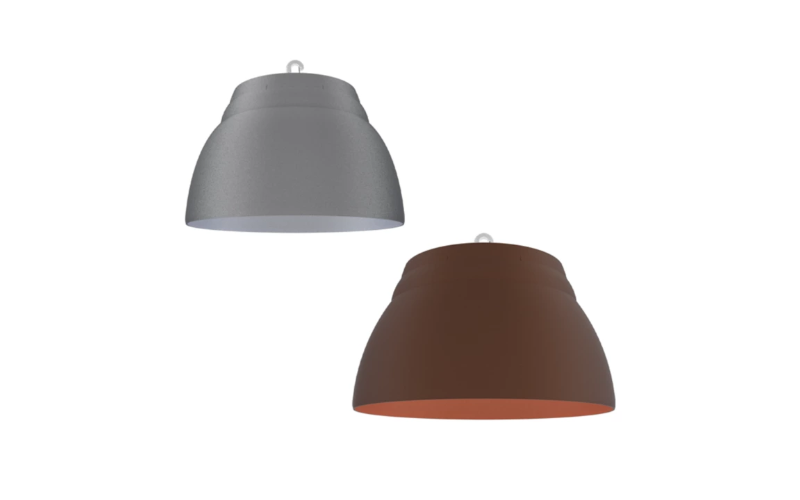

UHBS2. Decorative High Bay Gen 2 High output 12,000 - 36,000 Lumens Performance Based Decorative Pendant.
Configure
Add to project
RESOURCES
DESCRIPTION

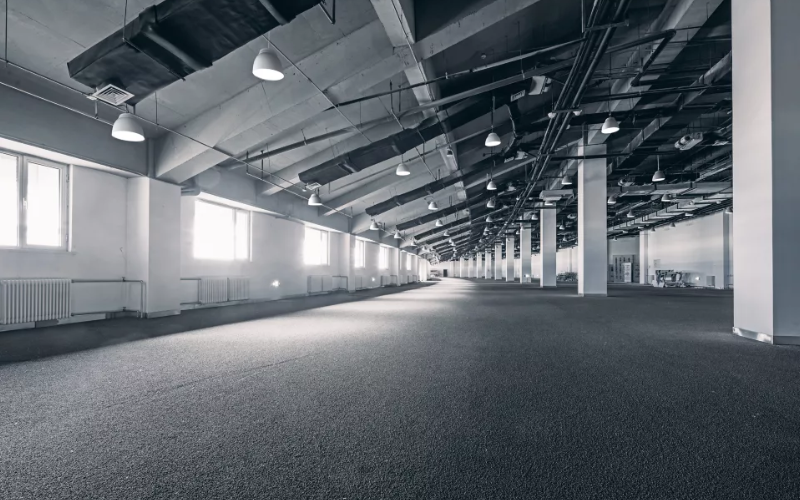

PrentaLux is leading the way in lighting innovation and sustainability with 3D-printed luminaires like the Decorative High Bay Gen 2. This new generation offers more versatility with upgraded warmer CCTs (3000K and 3500K) and field adjustable optical distributions. The Decorative High Bay Gen 2 pairs an elegant, customizable aesthetic with the robust output needed for big-box retail, grocery, and other high-ceiling environments.
- Opaque or translucent shades in various color offerings
- Selectable Lumen/Power performance up to 36,000 lumen
- 5 Color Selectable CCT - 3000/3500/4000/5000/6500K
- Field selectable distribution - Narrow, Medium, or Wide
- Sensor ready port for quick plug and play install
- 120-347 operating range with 6kV surge protection
- NEMA 4X, IP65 and NSF rated
- IP65 rated lens and driver enclosure
- 10ft power and dimming cords for easy installation
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 17.3"19.3"L: 17.3"19.3"H: 11.1"11"
- Light SourceLED
- CCT/Color3000K3500K4000K5000K6500KField Select CCT
- CRI80
- Watt(Approx)81-121 W155-230 Wswitchable
- Lumens(Approx)12000-18000 Lm24000-36000 Lmswitchable
- OpticsDirectAdjustable Optics
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegral120V277V347V
- Integral Emergency
- Lumen Maintenance218000 h
- CertificatesUL/CULNSFRoHSDeclare
- EnvironmentIP653D Printed
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
