Peerless (Acuity Brands Lighting)

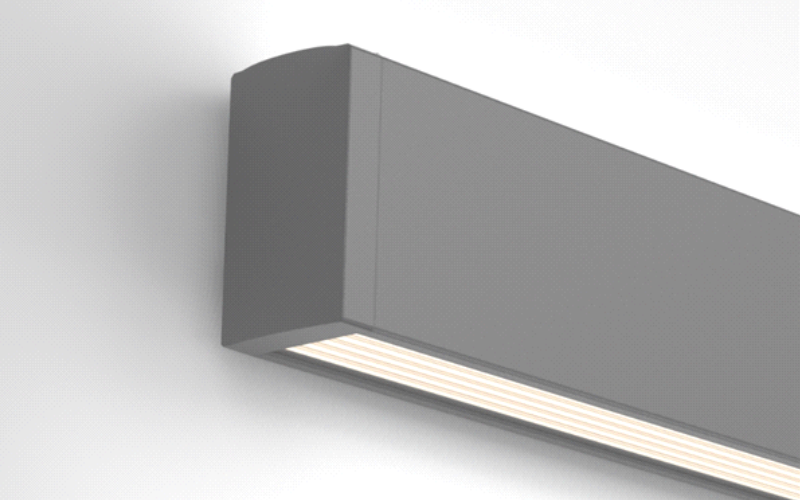

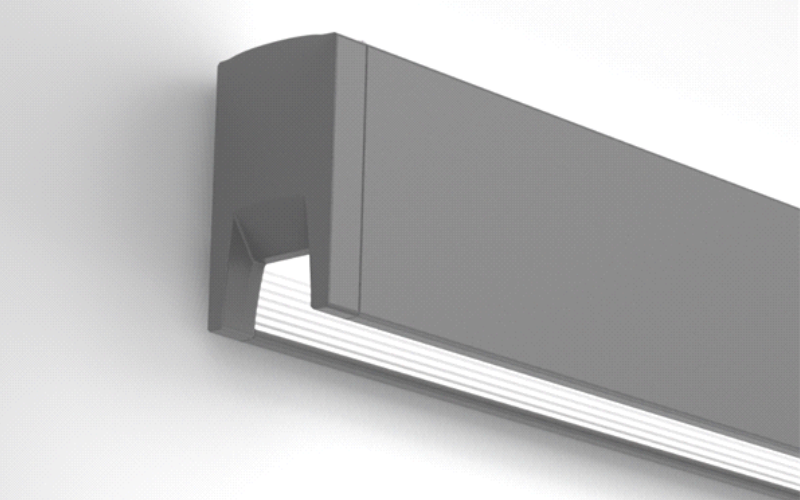

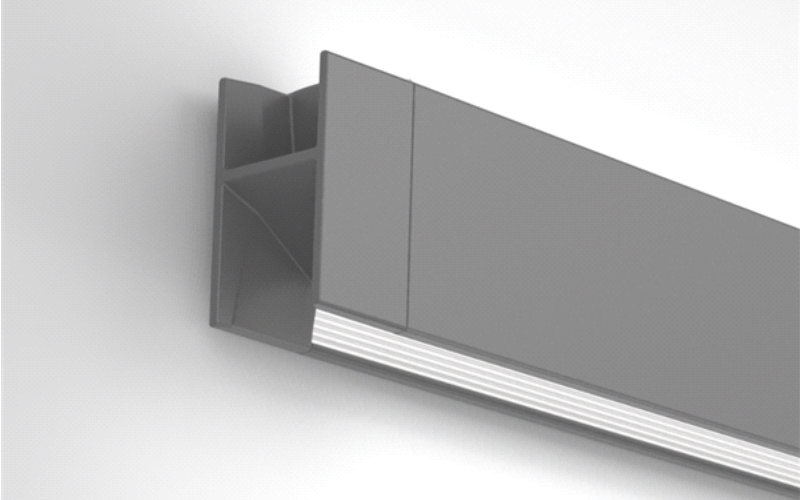

PRM2WID. 2'' Prim Wall Indirect Direct Static White.
Configure
Add to project




RESOURCES
DESCRIPTION
Prim strikes a balance between what a luminaire should do and how it should feel. Prim’s all-around seamless design is uninterrupted by complementing end caps and interchangeable trims that add to the continuity of a space, generating harmony across the entire lighting application.
Prim 2” Wall is fully ADA compliant with less than 3” of protrusion into the space, and offers a seamless design, enabling continuous runs up to 100ft. Prim Wall features a customizable direct aperture style, tunable white technology, and an asymmetric indirect distribution. A highly reflective matte white room side trim allows Prim Wall to ensure maximum reflectance down the wall. Design freedom is preserved with selectable wall side trims that are available with ribbed or smooth finish, with a series of painted or anodized color options.
Prim 2” Wall is fully ADA compliant with less than 3” of protrusion into the space, and offers a seamless design, enabling continuous runs up to 100ft. Prim Wall features a customizable direct aperture style, tunable white technology, and an asymmetric indirect distribution. A highly reflective matte white room side trim allows Prim Wall to ensure maximum reflectance down the wall. Design freedom is preserved with selectable wall side trims that are available with ribbed or smooth finish, with a series of painted or anodized color options.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2 1/2"L: Run length (Ft)H: 4 1/2"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI80 90
- Watt(Approx)
- Lumens(Approx)200 Lm/Ft300 Lm/Ft500 Lm/Ft600 Lm/Ft700 Lm/Ft900 Lm/Ft1300 Lm/Ft1800 Lm/Ft
- OpticsIndirect/DirectAsymmetric Indirect/General Direct
- Adjustable
- DimmingDim to 1%Dim to <1%0-10VDALILutron EcoSystem
- Controls/NetworknLight®Integral Sensor
- Power/VoltageIntegralRemoteUNV 120-277V120V277V347V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesUL/CULChicago Approved
- EnvironmentDamp
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timePRM2WID
—
