Peerless (Acuity Brands Lighting)

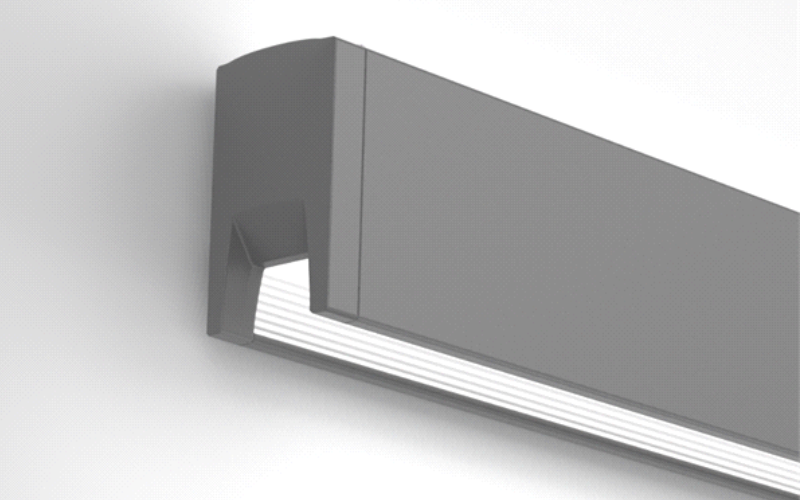

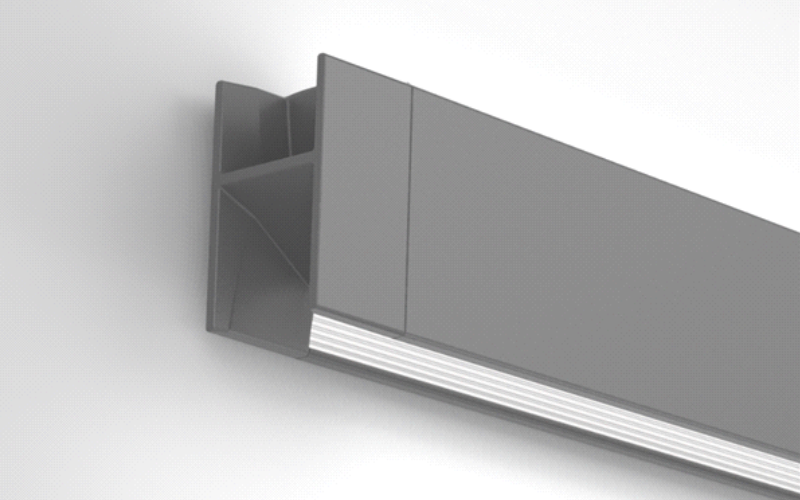

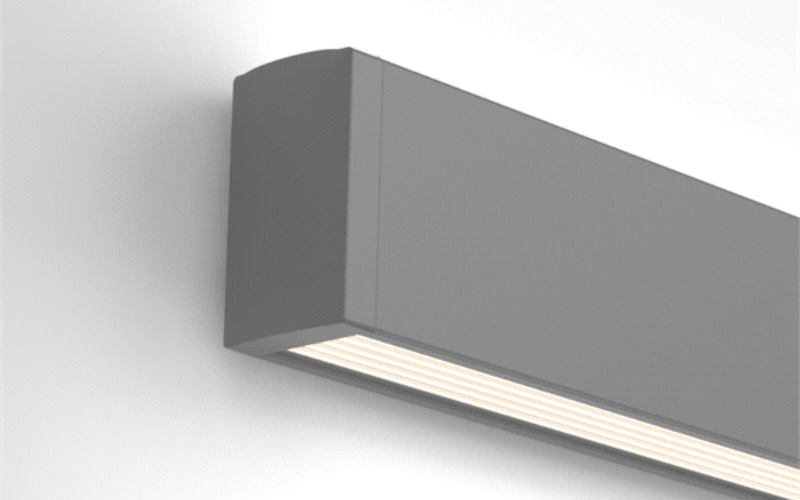

PRM2WD. 2'' Prim Wall Direct Tunable White.
Configure
Add to project




RESOURCES
DESCRIPTION
Prim strikes a balance between what a luminaire should do and how it should feel. Prim’s all-around seamless design is uninterrupted by complementing end caps and interchangeable trims that add to the continuity of a space, generating harmony across the entire lighting application.
Prim 2” Wall is fully ADA compliant with less than 3” of protrusion into the space, and offers a seamless design, enabling continuous runs up to 100ft. Featuring tunable white technology and a customizable direct aperture style with highly reflective matte white room side trim, Prim Wall ensures maximum reflectance down the wall. Design freedom is preserved with selectable wall side trims that are available with ribbed or smooth finish, with a series of painted or anodized color options.
Prim 2” Wall is fully ADA compliant with less than 3” of protrusion into the space, and offers a seamless design, enabling continuous runs up to 100ft. Featuring tunable white technology and a customizable direct aperture style with highly reflective matte white room side trim, Prim Wall ensures maximum reflectance down the wall. Design freedom is preserved with selectable wall side trims that are available with ribbed or smooth finish, with a series of painted or anodized color options.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2 1/2"L: Run length (Ft)H: 4 1/2"
- Light SourceLED
- CCT/ColorTunable White
- CRI80 90
- Watt(Approx)4.5 W/Ft6.4 W/Ft
- Lumens(Approx)200 Lm/Ft458 Lm/Ft648 Lm/Ft1000 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 1%Dim to <1%0-10V
- Controls/NetworknLight®Integral Sensor
- Power/VoltageRemoteUNV 120-277V120V277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesUL/CULChicago Approved
- EnvironmentDamp
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timePRM2WD-TW
—
