Peerless (Acuity Brands Lighting)
PL5RDMP. Pierline 5'' Linear Recessed Pattern for Bold, Continuous Lines of Light
Configure
Add to project
RESOURCES
DESCRIPTION

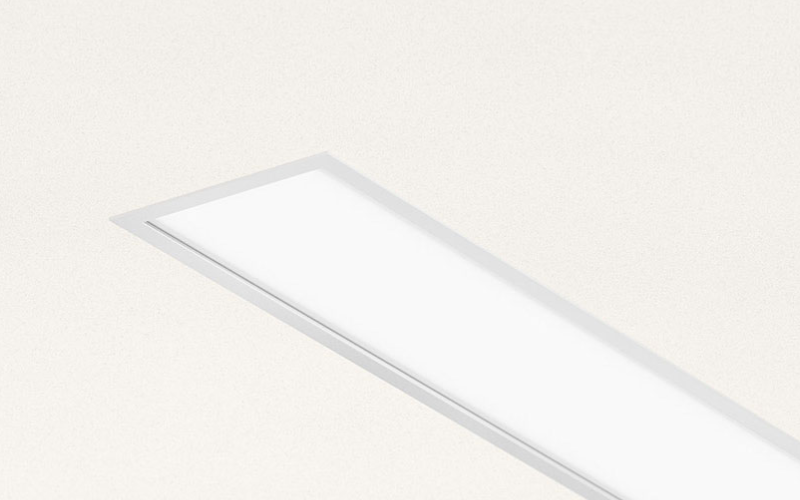

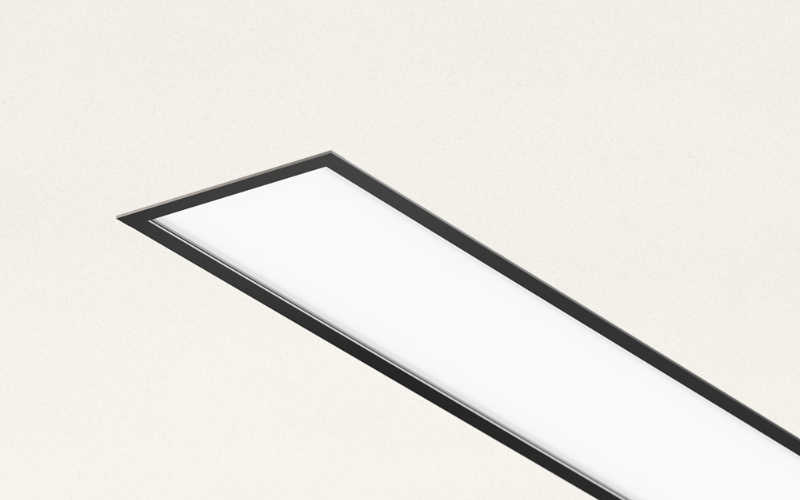

A high-performance recessed linear luminaire that creates broad, continuous lines of light or patterns. Designed for high ceilings.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 5.06"L: Run length (Ft)
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000KTunable WhiteRGBW
- CRI80 90
- Watt(Approx)5 W/Ft9 W/Ft19.5 W/Ft
- Lumens(Approx)540 Lm/Ft1074 Lm/Ft2071 Lm/Ft
- OpticsDirectGeneral DiffusedAsymmetric/Wash
- Adjustable
- DimmingDim to 1%Dim to <1%0-10VDALIDMX
- Controls/NetworknLight®Integral Sensor
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesUL/CULBAA
- EnvironmentWetNatatorium
- Mounting TypeCeiling RecessedDrywallT-Grid CeilingSlot T-Grid Ceiling
- HousingNew ConstructionChicago Plenum
- Housing Depth5 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
