Peerless (Acuity Brands Lighting)

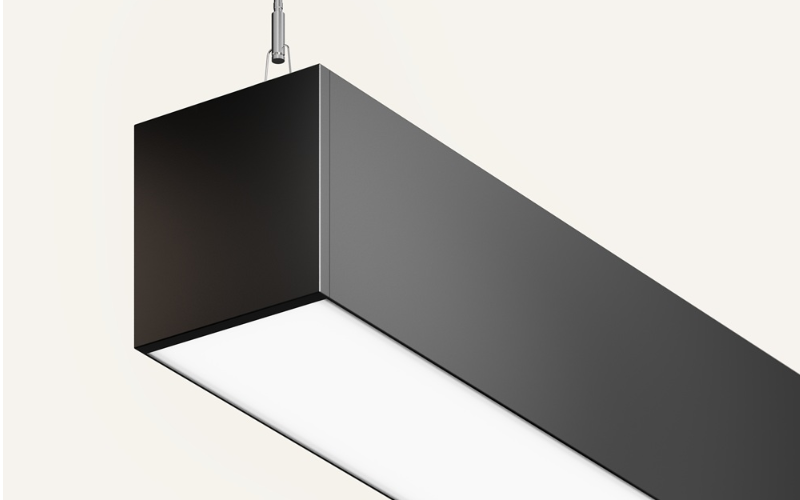

PL5P. Pierline 5'' Linear Pendant Pattern for Bold, Continuous Lines of Light
Configure
Add to project
RESOURCES
DESCRIPTION

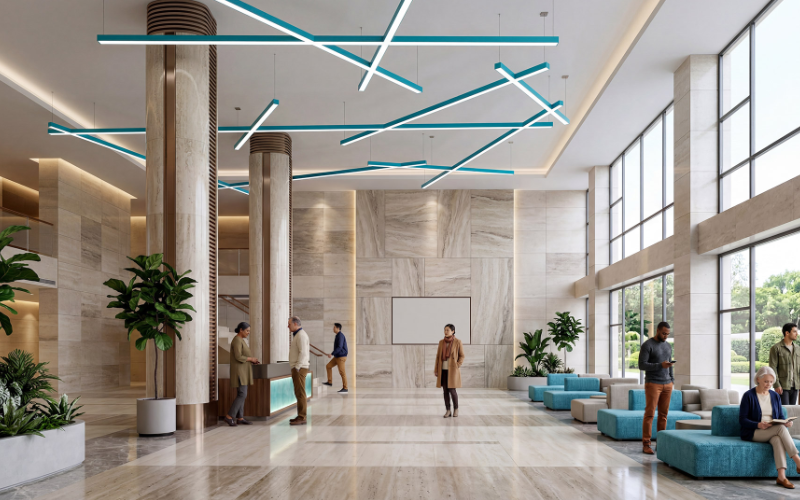

A high-performance linear pendant that creates broad, continuous lines of light or patterns. Extensive direct & indirect options.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 5.06"L: Run length (Ft)H: 5"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000KTunable WhiteRGBW
- CRI80 90
- Watt(Approx)5 W/Ft6.5 W/Ft9 W/Ft13.5 W/Ft23 W/Ft19.5 W/Ft
- Lumens(Approx)715 Lm/Ft540 Lm/Ft1418 Lm/Ft1074 Lm/Ft1680 Lm/Ft2071 Lm/Ft
- OpticsDirectIndirectGeneral DiffusedAsymmetric/WashBatwing
- Adjustable
- DimmingDim to 1%Dim to <1%0-10VDALIDMX
- Controls/NetworknLight®Integral Sensor
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesUL/CULBAA
- EnvironmentWetNatatorium
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timePL5P-PAT
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
