Peerless (Acuity Brands Lighting)

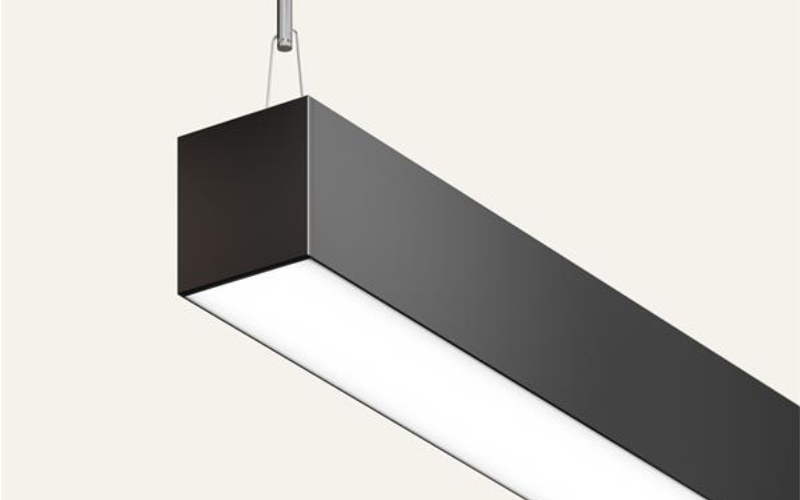

PL3P. Pierline 3'' Linear Pendant for Clean & Simple Lines of Light.
Configure
Add to project
RESOURCES
DESCRIPTION

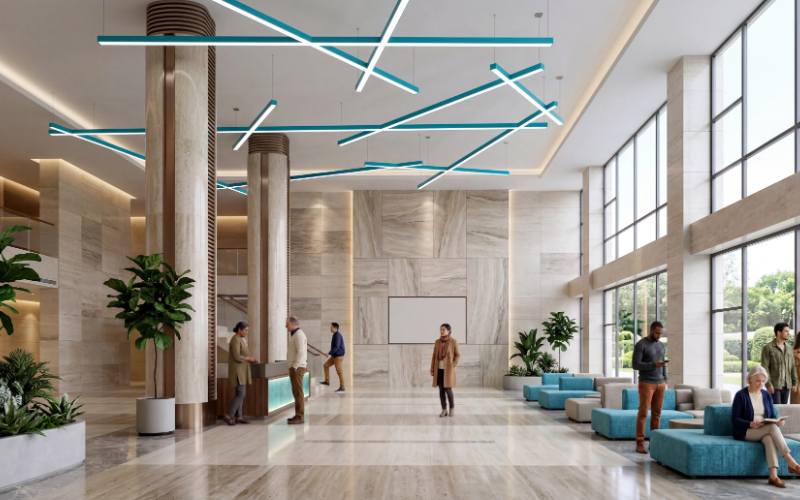

A high-performance linear pendant that creates continuous lines of light or patterns. Five optics available for specific lighting styles.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3.57"L: Run length (Ft)H: 3.57"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000KTunable WhiteRGBW
- CRI80 90
- Watt(Approx)5 W/Ft10.5 W/Ft13 W/Ft
- Lumens(Approx)695 Lm/Ft555 Lm/Ft1344 Lm/Ft1071 Lm/Ft1323 Lm/Ft1647 Lm/Ft
- OpticsDirectIndirectIndirect/DirectGeneral DiffusedAsymmetric/WashBatwing
- Adjustable
- DimmingDim to 1%Dim to <1%0-10VDALIDMX
- Controls/NetworknLight®Integral Sensor
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesUL/CULBAA
- EnvironmentDampWetNatatorium
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
