Peerless (Acuity Brands Lighting)
PL2SD. Pierline 2'' Linear Surface for Clean & Simple Lines of Light.
Configure
Add to project
RESOURCES
DESCRIPTION

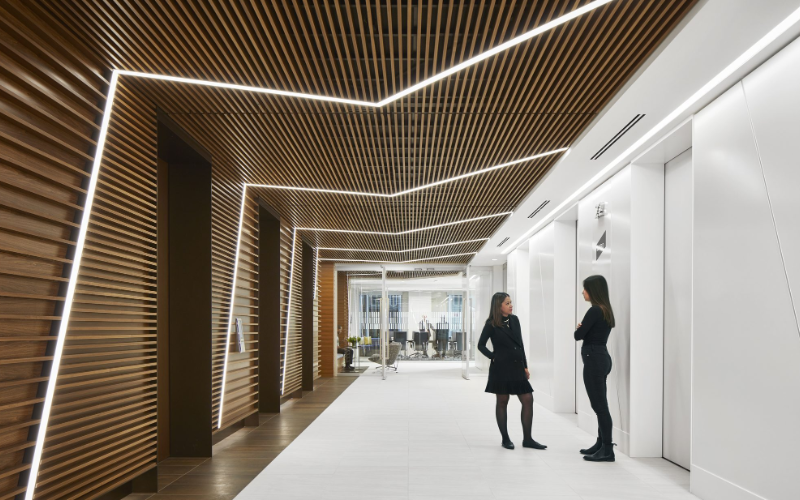

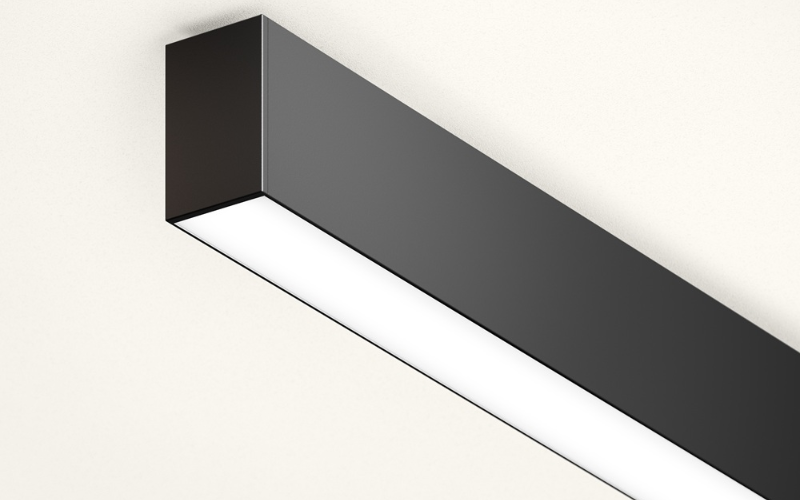

A slim-profile linear luminaire that creates continuous lines of light or patterns on ceiling surfaces.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.25"L: Run length (Ft)H: 3.91"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000KTunable WhiteRGBW
- CRI80 90
- Watt(Approx)5 W/Ft10 W/Ft13 W/Ft
- Lumens(Approx)520 Lm/Ft960 Lm/Ft1229 Lm/Ft
- OpticsDirectGeneral DiffusedAsymmetric/WashBatwing
- Adjustable
- DimmingDim to 1%Dim to <1%0-10VDALIDMX
- Controls/NetworknLight®Integral Sensor
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesUL/CULADABAA
- EnvironmentMRIWetNatatorium
- Mounting TypeCeiling Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timePL2SD
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
