Peerless (Acuity Brands Lighting)

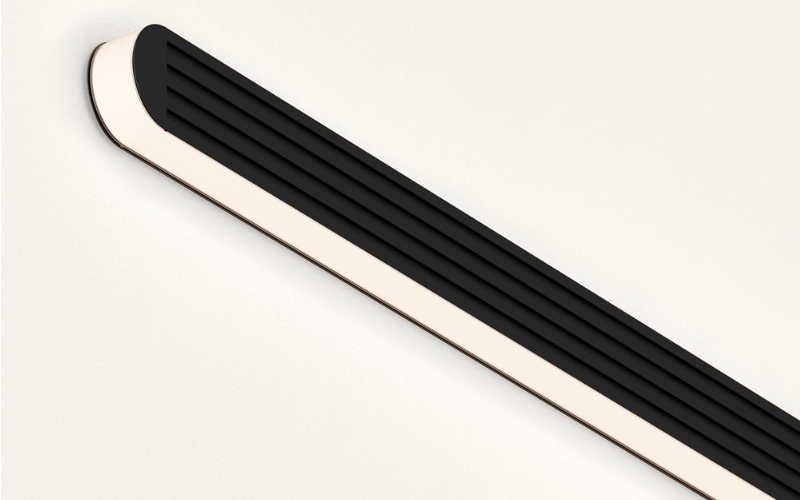

APT2W. Aptitude 2'' Wall System for Linear Runs.
Configure
Add to project
RESOURCES
DESCRIPTION
Distinctive linear wall system with grooved aesthetic for vertical or horizontal straight runs.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.32"L: Run length (Ft)H: 4.49"
- Light SourceLED
- CCT/Color2700K3000K3500K4000KTunable WhiteRGBW
- CRI90
- Watt(Approx)2.13 W/Ft2.84 W/Ft2.45 W/Ft3.54 W/Ft4.26 W/Ft3.31 W/Ft4.16 W/Ft5.15 W/Ft6.02 W/Ft5.04 W/Ft5.94 W/Ft6.85 W/Ft7.58 W/Ft9.16 W/Ft8.7 W/Ft10.62 W/Ft
- Lumens(Approx)302 Lm/Ft400 Lm/Ft499 Lm/Ft600 Lm/Ft701 Lm/Ft801 Lm/Ft1000 Lm/Ft1200 Lm/Ft
- OpticsDirectIndirectDirect/IndirectGeneral DiffusedAsymmetric/WashBatwingBatwing Indirect/General Direct
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%0-10VDALI
- Controls/NetworknLight®Integral Sensor
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesUL/CULBAA
- EnvironmentDamp
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeAPT2W
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
