Pinnacle Architectural Lighting (Legrand)

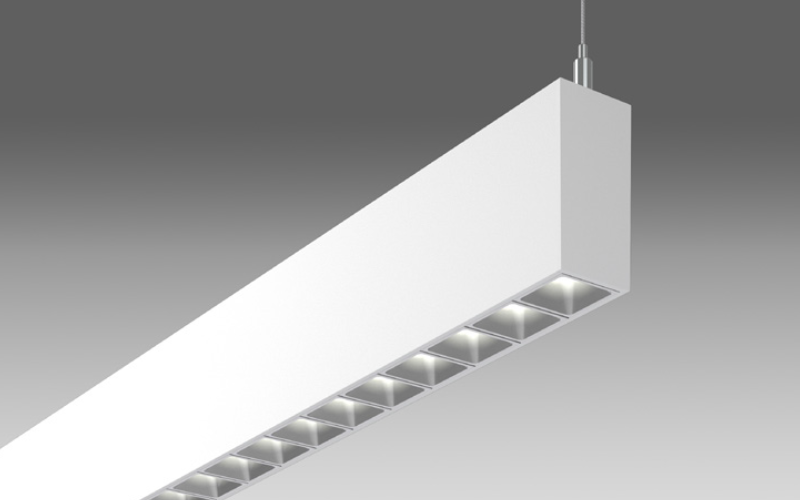

EX1DI. EDGE 1'' Suspended Bidirectional Linear.
Configure
Add to project


RESOURCES
-
SPEC SHEET
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
EDGE 1 Veil Louver Direct/Indirect (EX1DI-V) shields the source to minimize potential for discomfort glare, improving visual comfort for better focus, fewer distractions, and a calmer visual field. With bidirectional illumination and independent uplight/downlight control, it helps balance background brightness, task needs, and mood.
Design with intent by mixing Veil Louver, lensed, and blank sections within a single continuous run. Go full louver for a quiet, low-brightness ceiling expression, add lensed segments where broader illumination is needed, or keep sections blank to carry the rhythm without adding light. Veil Louver is made to mix, giving you the flexibility to put light exactly where it’s needed while maintaining one unified, narrow-aperture look.
Design with intent by mixing Veil Louver, lensed, and blank sections within a single continuous run. Go full louver for a quiet, low-brightness ceiling expression, add lensed segments where broader illumination is needed, or keep sections blank to carry the rhythm without adding light. Veil Louver is made to mix, giving you the flexibility to put light exactly where it’s needed while maintaining one unified, narrow-aperture look.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 3/4"L: Run length (Ft)H: 3 9/16"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 90
- Watt(Approx)4.5 W/Ft7 W/Ft9.6 W/Ftcustom
- Lumens(Approx)500 Lm/Ft750 Lm/Ft1000 Lm/Ftcustom
- OpticsDirect/IndirectNarrowFloodWide Flood
- Adjustable
- DimmingDim to 1%Dim to <1%0-10VLutron Hi-lume EcoSystem (LDE1)eldoLED ECO 0-10VeldoLED SOLO 0-10V
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277V120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesUL/CULBAA
- EnvironmentDamp
- Mounting TypePendantCeiling SurfaceWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
