PureEdge Lighting

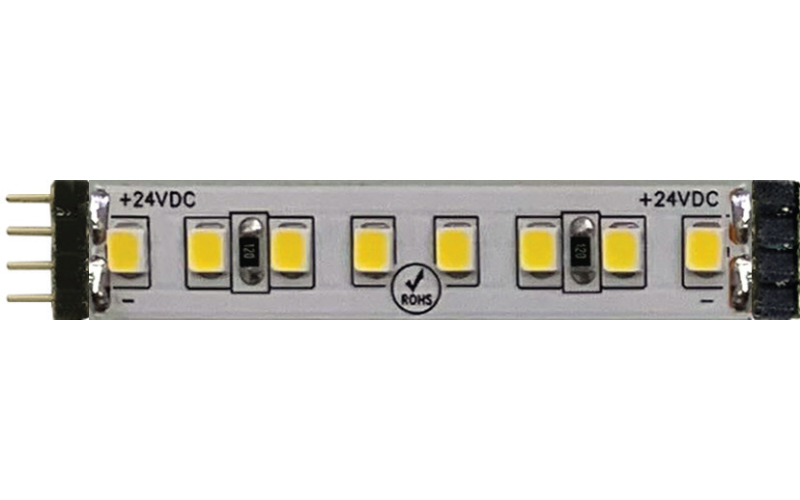

SSB. HIGH OUTPUT STRIP, STATIC WHITE 24VDC WITH PINS & SOLDERED LEADS.
Configure
Add to project


RESOURCES
DESCRIPTION
Our Low Voltage LED strips are engineered for powerful illumination, delivering up to over 2581 lumens per foot while sustaining efficacy above 196 lumens per watt. With 95+ CRI values across the entire range, these strips provide true-to-life color rendering and industry-best consistency through single-binned LEDs.
Designed for demanding applications, our high-output strips are highly durable and serve as the backbone of our DIY (Do-it-Yourself) fixtures and systems. Available in multiple wattages, these compact, high-performance strips deliver smooth, pixel-free illumination in all PureEdge channels and extrusions when paired with a frosted lens.
Designed for demanding applications, our high-output strips are highly durable and serve as the backbone of our DIY (Do-it-Yourself) fixtures and systems. Available in multiple wattages, these compact, high-performance strips deliver smooth, pixel-free illumination in all PureEdge channels and extrusions when paired with a frosted lens.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsL: Run length (Ft)
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90
- Watt(Approx)1 W/Ft2 W/Ft3 W/Ft5 W/Ft7 W/Ft10 W/Ft
- Lumens(Approx)182 Lm/Ft325 Lm/Ft522 Lm/Ft751 Lm/Ft1104 Lm/Ft2102 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- Dimming
- Controls/Network
- Power/VoltageRemote
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLT24*RoHS
- EnvironmentDamp
- Mounting TypeSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeSSB
—
