PureEdge Lighting
MECE. MINI EDGE CHANNEL CEILING OR WALL DIY 24VDC, STATIC WHITE & COLOR, WARM & PRO DIM, TUNABLE WHITE, RGB, RGBW & RGBTW.
Configure
Add to project
RESOURCES
DESCRIPTION

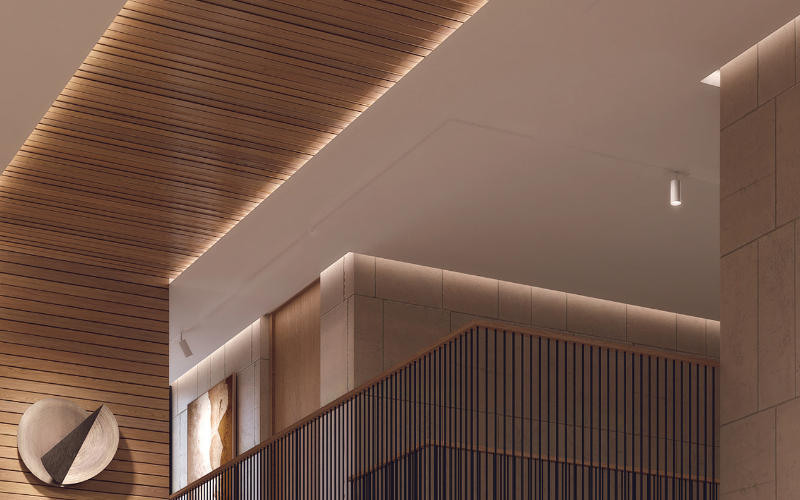

Mini Edge Channel DIY (Do-It-Yourself) enhances spaces with depth and dimension, seamlessly integrating into the architecture. Our slim, aluminum channel extrusions, LED strips, and lenses are field-cuttable and ordered in 2, 5, or 7 watts per foot. Mini Edge is offered in a broad range of wattages and color temperatures from 2400K through 4000K, Warm Dim (27D or 30D), Pro-Dim (27KPD or 30KPD), Tunable White (2K6K or 27K6), Dynamic RGB, RGB+White in 2000K (special order in 27K, 30K and 40K), and TruColor™ RGBTW Color Changing RGB with Tunable White 1500K-6500K. Includes a 5-year pro-rated warranty.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.75"L: 2 Ft4 Ft5 Ft8 FtH: 3"
- Light SourceLED
- CCT/Color2400K or less2700K2700K Dim to Warm3000K3000K Dim to Warm3500K4000KTunable WhiteTunable White & ColorsRGBRGBWYellow/AmberRedGreenBlue
- CRI92 94 90
- Watt(Approx)2.5 W/Ft2.6 W/Ft4.4 W/Ft4.8 W/Ft5 W/Ft4.6 W/Ft6.3 W/Ft7 W/Ft7.3 W/Ft7.5 W/Ft
- Lumens(Approx)173 Lm/Ft231 Lm/Ft362 Lm/Ft451 Lm/Ft500 Lm/Ft669 Lm/Ft631 Lm/Ft548 Lm/Ft705 Lm/Ft1033 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- Dimming
- Controls/Network
- Power/VoltageRemote
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLADA
- EnvironmentDamp
- Mounting TypeCeiling SurfaceWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeMECE-DIY
