PureEdge Lighting

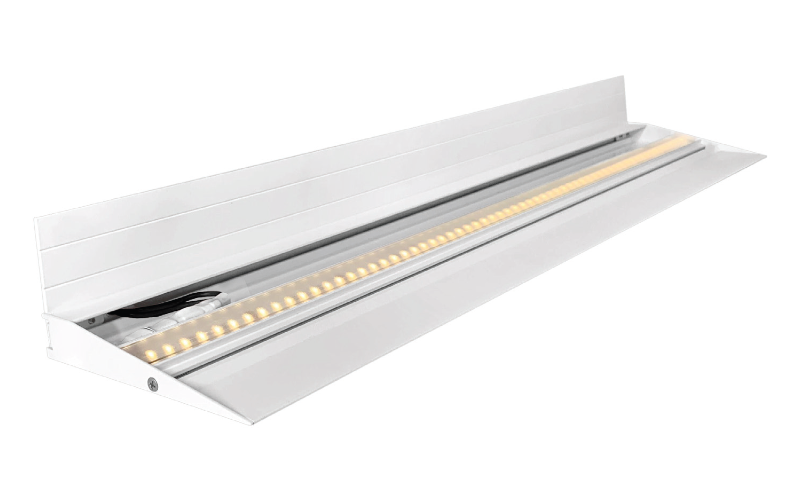

KNE. KNIFE EDGE CEILING 24VDC PLASTER-IN LED SYSTEM, STATIC WHITE & WARM DIM.
Configure
Add to project


RESOURCES
DESCRIPTION
Knife Edge Ceiling is another innovative design, coming from the family of plaster-in 24VDC systems, pioneered by PureEdge, that recess within 5/8" drywall without joist modification. With a true Knife Edge profile, there is no visible sightline of the lens or light shield, delivering a seamless, visual field across adjacent surfaces. The Knife Edge system generates a sophisticated and seamlessly sharp architectural element, providing consistent lighting across neighboring surfaces. It accommodates 5/8" thick drywall on its underside, making it suitable for architectural reveals, accent lighting, and surface mount applications. Offered in multiple wattage and color temperatures ranging from 2400K through 4000K. Remote Power supplies are required and sold separately. Remote Power supplies are required and sold separately. Coordinate installation with electrical and drywall contractors. Includes a 5-year pro-rated warranty.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4.5"L: Run length (Ft)H: 0.71"
- Light SourceLED
- CCT/Color2400K or less2700K2700K Dim to Warm3000K3000K Dim to Warm3500K4000K
- CRI92
- Watt(Approx)2.5 W/Ft5 W/Ft7.5 W/Ft10 W/Ft
- Lumens(Approx)172 Lm/Ft319 Lm/Ft492 Lm/Ft632 Lm/Ft
- OpticsDirectAsymmetric/Wash
- Adjustable
- Dimming
- Controls/Network
- Power/VoltageRemote
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETL
- EnvironmentDamp
- Mounting TypeCeiling RecessedWall Recessed
- HousingFixture
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
