PureEdge Lighting
KNE. KNIFE EDGE CEILING TRUCOLOR™ RGBTW 24VDC PLASTER-IN LED SYSTEM, 5 CHANNEL CONTROL.
Configure
Add to project
RESOURCES
DESCRIPTION

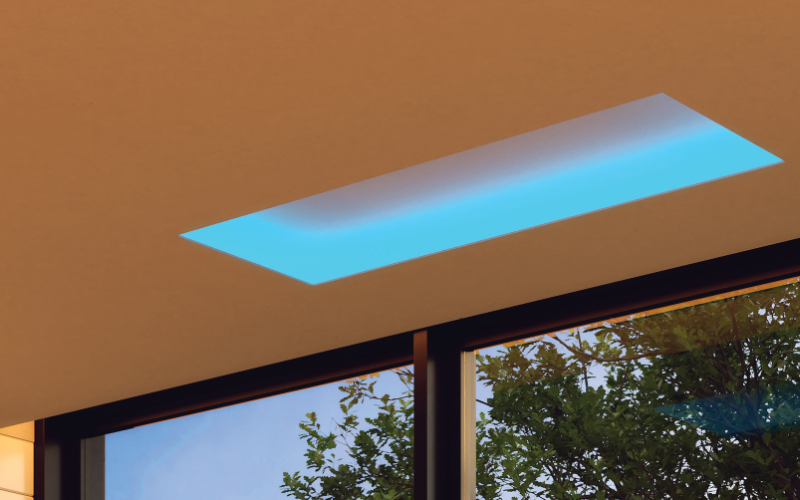

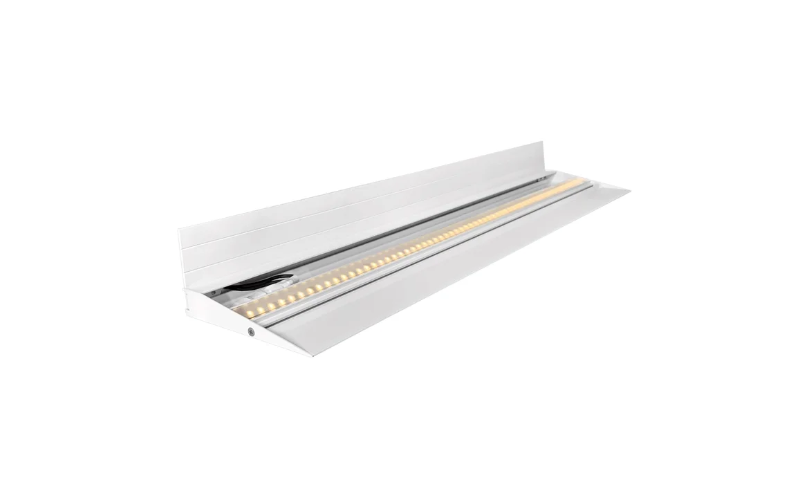

Knife Edge Ceiling with 24V TruColor™ RGBTW technology combines five tunable LED channels for exceptional color accuracy. With a true Knife Edge profile, there is no visible sightline of the lens or light shield, delivering a seamless, visual field across adjacent surfaces. The Knife Edge system generates a sophisticated and seamlessly sharp architectural element, providing consistent lighting across neighboring surfaces. Remote Power supplies are required and sold separately. Coordinate installation with electrical and drywall contractors. Includes a 5-year pro-rated warranty.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4.5"L: Run length (Ft)H: 0.71"
- Light SourceLED
- CCT/ColorTunable White & Colors
- CRI90
- Watt(Approx)5 W/Ft7 W/Ft10 W/Ft
- Lumens(Approx)390 Lm/Ft526 Lm/Ft634 Lm/Ft
- OpticsDirectAsymmetric/Wash
- Adjustable
- Dimming
- Controls/Network
- Power/VoltageRemote
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETL
- EnvironmentDamp
- Mounting TypeCeiling RecessedWall Recessed
- HousingFixture
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeKNE-RGBTW
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
