KNE. KNIFE EDGE DIY 24VDC, DO-IT-YOURSELF PLASTER-IN LED SYSTEM.
Configure
Add to project




RESOURCES
DESCRIPTION

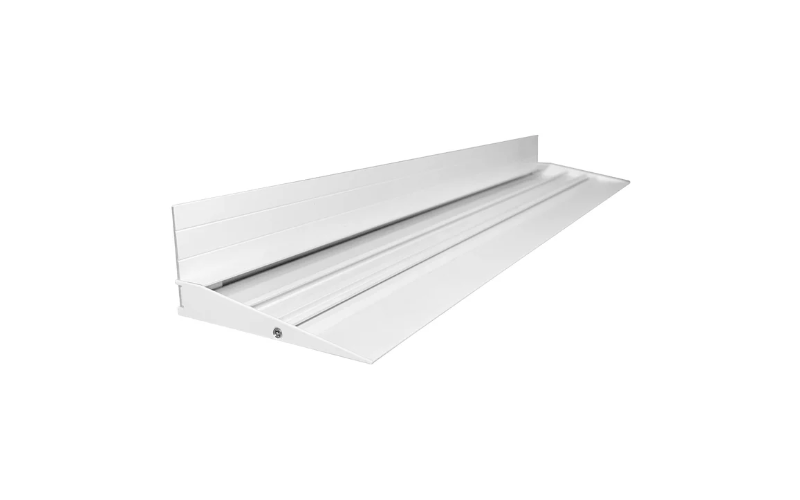

PureEdge's latest addition to the 24VDC, 5/8" plaster-in family of products features a true Knife Edge profile with no visible sightline of the asymmetric lens or light blocker, delivering a seamless, uniform visual field across adjacent surfaces - install with a curved wall to ceiling, an effect reminiscent of the Ganzfeld phenomenon (Fig.2, pg 2). It's ideal for architectural, soffit, light cove, and accent lighting, engineered to support 1/2" or 5/8" thick drywall on the underside or mount directly to the wall. Our Knife Edge is a bold evolution of the 5/8" plaster-in system pioneered by PureEdge Lighting. Merging form and function, it introduces a clean, modern profile that elevates both residential and commercial spaces, giving you the freedom to design distinctive, one-of-a-kind environments. Coordinate installation with electrical and drywall contractors. Includes a 5-year pro-rated warranty. Material: extruded aluminum, White RAL 9010 powder coat. Includes a 5-year prorated warranty.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4.5"L: 4 Ft8 FtH: 0.71"
- Light SourceLED
- CCT/Color2400K or less2700K2700K Dim to Warm3000K3000K Dim to Warm3500K4000KTunable WhiteTunable White & ColorsRGBRGBWYellow/AmberRedGreenBlue
- CRI
- Watt(Approx)2.5 W/Ft2.6 W/Ft4.4 W/Ft4.8 W/Ft5 W/Ft4.6 W/Ft6.3 W/Ft7 W/Ft7.3 W/Ft9.6 W/Ft7.5 W/Ft10 W/Ft
- Lumens(Approx)173 Lm/Ft242 Lm/Ft362 Lm/Ft451 Lm/Ft452 Lm/Ft410 Lm/Ft669 Lm/Ft631 Lm/Ft548 Lm/Ft592 Lm/Ft610 Lm/Ft554 Lm/Ft667 Lm/Ft1033 Lm/Ft1287 Lm/Ft1069 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- Dimming
- Controls/Network
- Power/VoltageRemote
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETL
- EnvironmentDamp
- Mounting TypeCeiling RecessedWall RecessedDrywall
- Housing
- Housing Depth0.63 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeKNE-DIY
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for detailsBUILD CATALOG NUMBER
