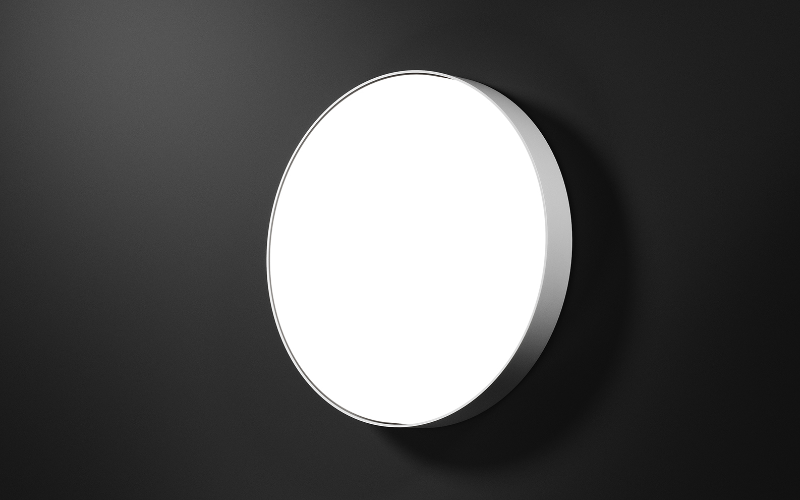

CQ2. Cirque™ INDOOR SCONCE.
Configure
Add to project
RESOURCES
DESCRIPTION
- Slim-profile 4.75” drum luminaire available in surface, and wall mount configurations
- Available in 14”, 18”, 24”, 36”, and 48” diameters
- Multiple lens configurations available including flush mount, 0.75” drop lens, and 0.75” regress lens options
- Precision-rolled aluminum housing with fully luminous acrylic diffuser
- Proprietary 90+ CRI LED light engine designed for smooth, even illumination across the entire diffuser surface
- Universal voltage (120–277V)
- Standard 0–10V dimming (1%)
- Field-replaceable LED driver components
- BAA / BABA compliant
- This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4.275"L: 14"18"22"34"46"H: 14"18"22"34"46"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90
- Watt(Approx)21 W30 W41 W114 W220 W
- Lumens(Approx)1690 Lm2590 Lm3500 Lm9370 Lm18450 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 1%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance190000 h185000 h
- CertificatesETLMade in USARoHS
- EnvironmentDamp
- Mounting TypeWall Surface
- Housing
- Housing Depth
