Nightingale (Acuity Brands Lighting)

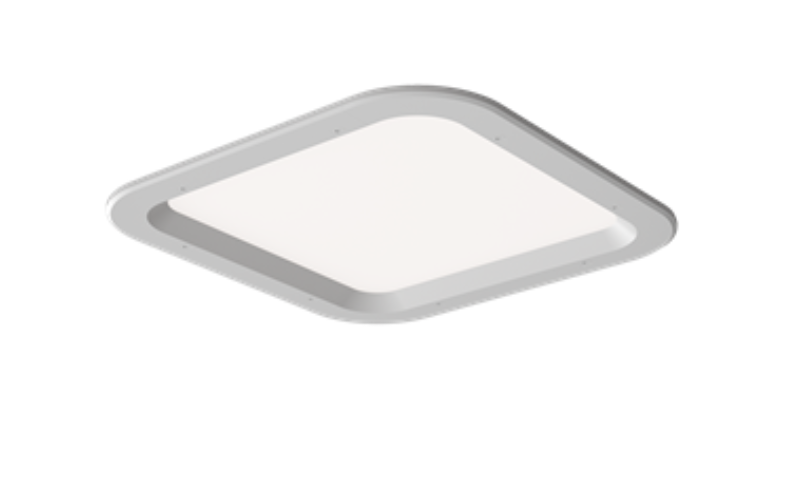

NBPN. Attune™ panel.
Configure
Add to project
RESOURCES
DESCRIPTION
The Attune™ panel is designed to feel thoughtful and intentional. Its gentle curves create a calm presence, while the textured lens minimizes reflections. Slightly recessed into the frame, the lens brings depth to the ceiling, offering a more visual interest than a flat panel.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 11.75"23.75"L: 11.75"23.75"47.75"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI80 90
- Watt(Approx)14.7 W19.2 W26.8 W23.6 W33.6 W40.5 W46.3 W54.9 W67.2 W83.6 W
- Lumens(Approx)1.561 Lm1.981 Lm2.554 Lm2.953 Lm4.068 Lm4.827 Lm5.941 Lm6.996 Lm8.348 Lm9.973 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 1%Dim to <1%Non-Dim0-10VDALI
- Controls/NetworknLight®Integral Sensor
- Power/VoltageIntegralUNV 120-277V120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesCSABAA
- EnvironmentAntimicrobial FinishIP66Healthcare General
- Mounting TypeCeiling RecessedT-Grid Ceiling
- HousingICChicago Plenum
- Housing Depth4.4 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeNBPN
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
