NERI NORTH AMERICA

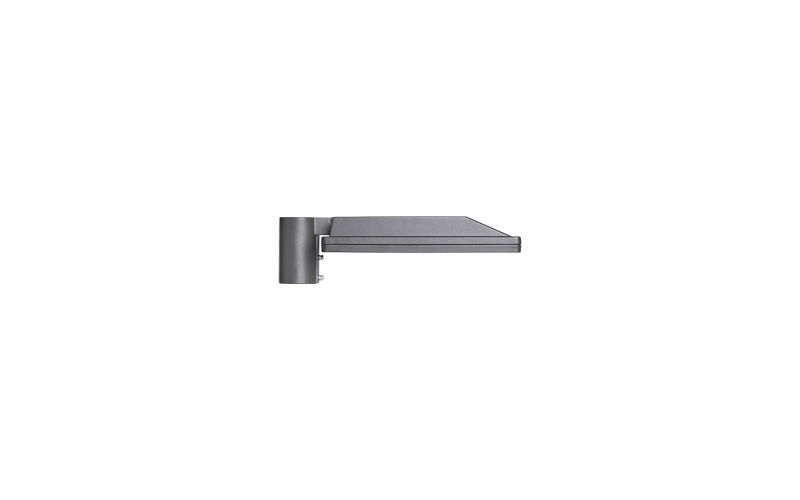

LUPIX00. PIXIS TOP.
Configure
Add to project
RESOURCES
DESCRIPTION
Pixis was created to give shape to urban light.
Compact, efficient, and versatile, it guides streets, pathways, and public areas with precise illumination.
More than just a lighting fixture, it is a technical instrument that treats light as a responsibility. A tool designed to blend design, spatial quality, and safety, working in harmony with the urban fabric without imposing on the environment.
Compact, efficient, and versatile, it guides streets, pathways, and public areas with precise illumination.
More than just a lighting fixture, it is a technical instrument that treats light as a responsibility. A tool designed to blend design, spatial quality, and safety, working in harmony with the urban fabric without imposing on the environment.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 9.3"L: 18.5"H: 5.1"
- Light SourceLED
- CCT/Color2700K3000K4000K
- CRI80
- Watt(Approx)16.7 W18.1 W26 W37.2 W34.2 W45.1 W67.2 W57.4 W
- Lumens(Approx)1500 Lm2500 Lm3500 Lm4000 Lm4500 Lm6000 Lm7000 Lm7500 Lm
- OpticsDirectNarrowMediumFloodWide FloodType IIType IIIType IVType V
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance
- CertificatesUL/CUL
- Environment
- Mounting TypePole/Post Top
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLUPIX00
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
