New Star Lighting
DCDS. DURACARE DOOR SURROUND SERIES.
Configure
Add to project
RESOURCES
DESCRIPTION
Patent Pending

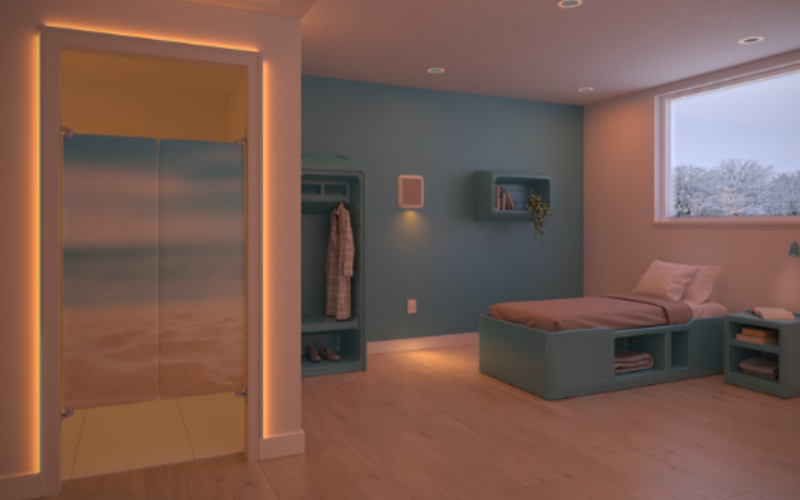

Architectural visual cue of light to stabilize posture for Assisted Living, Hospitals, or other healthcare environments

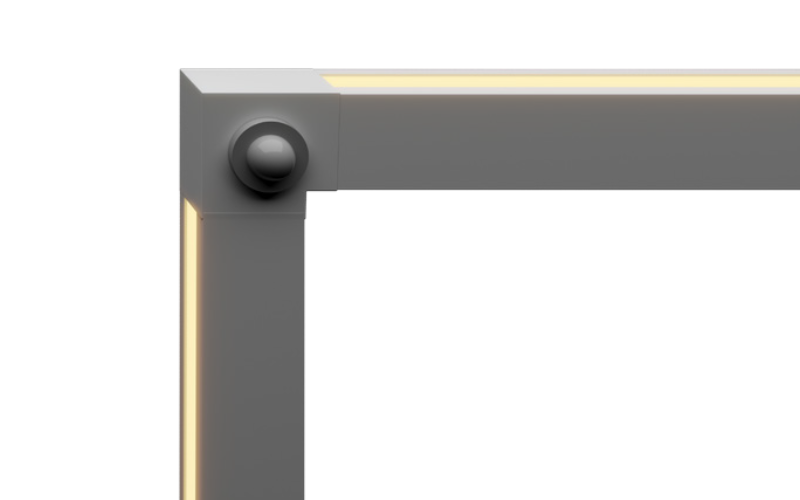

Robust, surface mount linear extrusions in customizable lengths to outline one, two or three sides of a door
Amber LED- circadian supportive wavelength at 590-595nm, <600 candella/m2
Low luminance, low glare and dimmable to prevent sleep disruption
Integral motion sensor option positioned in diecast endcaps
Fixture is certified to UL standards. IK10 listed per IEC60068. NSF2 Splash/Non-Food Zone listed
This product is Made in America and complies with Buy American Act requirements
Architectural visual cue of light to stabilize posture for Assisted Living, Hospitals, or other healthcare environments
Robust, surface mount linear extrusions in customizable lengths to outline one, two or three sides of a door
Amber LED- circadian supportive wavelength at 590-595nm, <600 candella/m2
Low luminance, low glare and dimmable to prevent sleep disruption
Integral motion sensor option positioned in diecast endcaps
Fixture is certified to UL standards. IK10 listed per IEC60068. NSF2 Splash/Non-Food Zone listed
This product is Made in America and complies with Buy American Act requirements
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsL: Run length (Ft)
- Light SourceLED
- CCT/ColorYellow/Amber
- CRI
- Watt(Approx)4.27 W/Ft
- Lumens(Approx)
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 1%0-10V
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralRemoteUNV 120-277V
- Integral Emergency
- Lumen Maintenance
- CertificatesUL/CULMade in USANSFBAA
- EnvironmentAntimicrobial FinishHealthcare General
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeDCDS
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
