New Star Lighting
57R. LED SERIES: QUICK SHIP.
 Configure
 Add to project

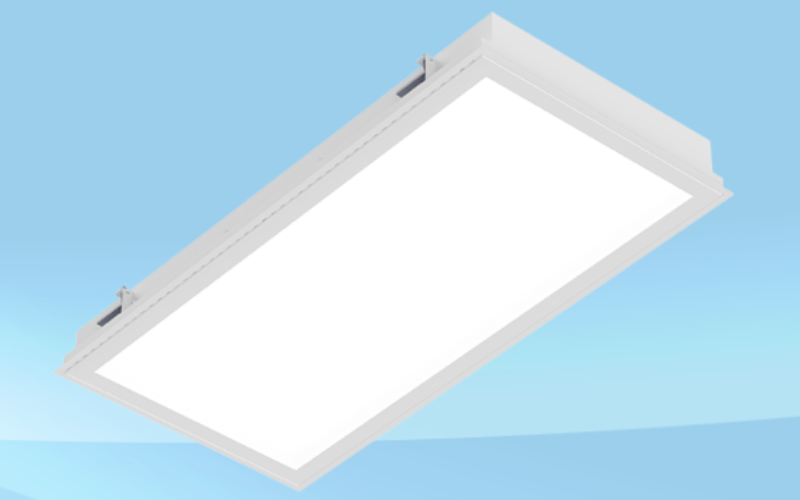

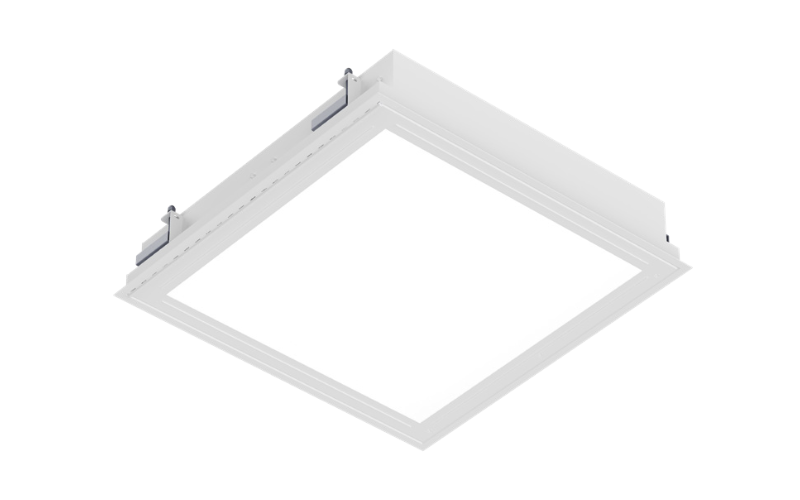

New Star Lighting. 57R. LED SERIES: QUICK SHIP.
New Star Lighting. 57R. LED SERIES: QUICK SHIP.
New Star Lighting. 57R. LED SERIES: QUICK SHIP.
RESOURCES
DESCRIPTION
Intended for Minimum to Maximum Correctional, Healthcare Settings, Public Housing, Transportation, Detention Centers, Athletic Facilities, and more

Recessed ceiling mount; universal housing for grid or flange

Lens secured by “Z” retainers with welded studs spaced six inches apart for maximum strength

10 Day Quick Ship for orders under 50 fixtures. Consult factory for large quantities or additional fixture options

This product was Made in America and complies with the Buy American Act requirements
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 2 Ft
    L: 4 Ft
  • Light Source
    LED
  • CCT/Color
    3500K4000K
  • CRI
    80 90
  • Watt(Approx)
    50 W100 W150 W200 W
  • Lumens(Approx)
    6000-6250 Lm12000-12500 Lm17250-18000 Lm23000-24000 Lm
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%0-10V
  • Controls/Network
  • Power/Voltage
    IntegralUNV 120-277V120V277V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
    50000 h
  • Certificates
    UL/CULMade in USABAA
  • Environment
    Antimicrobial FinishDampWetHealthcare General
  • Mounting Type
    Ceiling RecessedDrywallT-Grid Ceiling
  • Housing
    New Construction
  • Housing Depth
    4.38 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
