Mark Architectural Lighting (Acuity Brands Lighting)

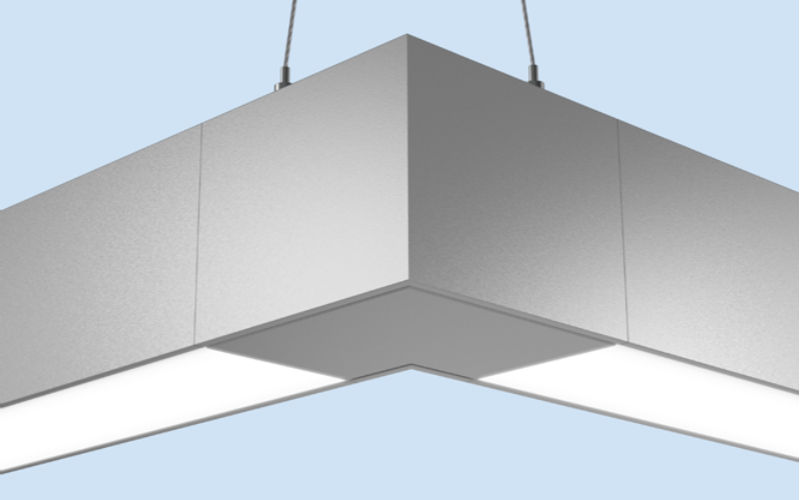

S4PIDMP. SLOT 4 NODE PENDANT INDIRECT/DIRECT PATTERN.
 Configure
 Add to project
DESCRIPTION

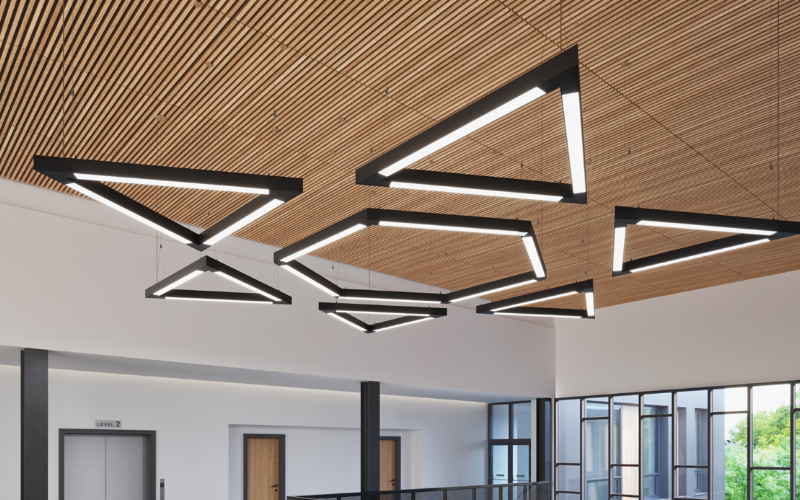

SLOT 4 linear lighting delivers a simple continuous line of light by creating brilliant illumination and exceptional visual comfort in a small form factor. Now, with the addition of NODE™, SLOT 4 expands its design versatility, enabling bold geometric layouts using standard components. These precision-engineered, non-illuminated corners make it easy to form clean 45°, 60°, 90°, 120°, and 135° angles, as well as X, Y, and T junctions, empowering designers to shape light with intention, without the need for custom solutions.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 4 1/2"
    L: Run length (Ft)
    H: 5 1/4"
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000K5000K
  • CRI
    80 90
  • Watt(Approx)
    1.95 W/Ft2.39 W/Ft2.55 W/Ft3.14 W/Ft4.68 W/Ft3.82 W/Ft4.85 W/Ft6.33 W/Ft6.19 W/Ft7.96 W/Ft10 W/Ft7.54 W/Ft8.98 W/Ft9.78 W/Ft11.93 W/Ft13.01 W/Ftcustom
  • Lumens(Approx)
    292 Lm/Ft394 Lm/Ft325 Lm/Ft405 Lm/Ft575 Lm/Ft610 Lm/Ft791 Lm/Ft973 Lm/Ft797 Lm/Ft1192 Lm/Ft1352 Lm/Ft1442 Lm/Ft1027 Lm/Ft1225 Lm/Ft1484 Lm/Ft1580 Lm/Ftcustom
  • Optics
    Indirect/DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%Dim to <1%Non-Dim0-10VDALI
  • Controls/Network
    nLight®Wireless DimmingIntegral Sensor
  • Power/Voltage
    IntegralUNV 120-277V120V277V347V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
    60000 h
  • Certificates
    CSAMade in USADeclareBAA
  • Environment
    Damp
  • Mounting Type
    Pendant
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
