S2PDMP. SLOT 2 NODE PENDANT DIRECT PATTERN.
Configure
Add to project
RESOURCES
DESCRIPTION

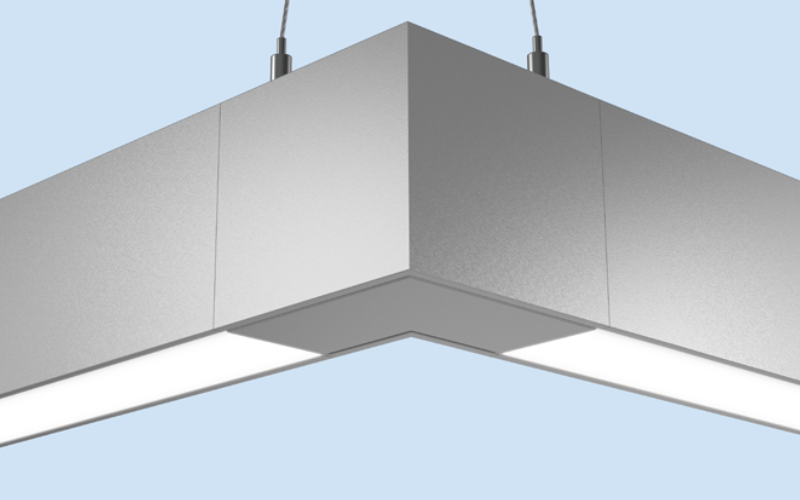

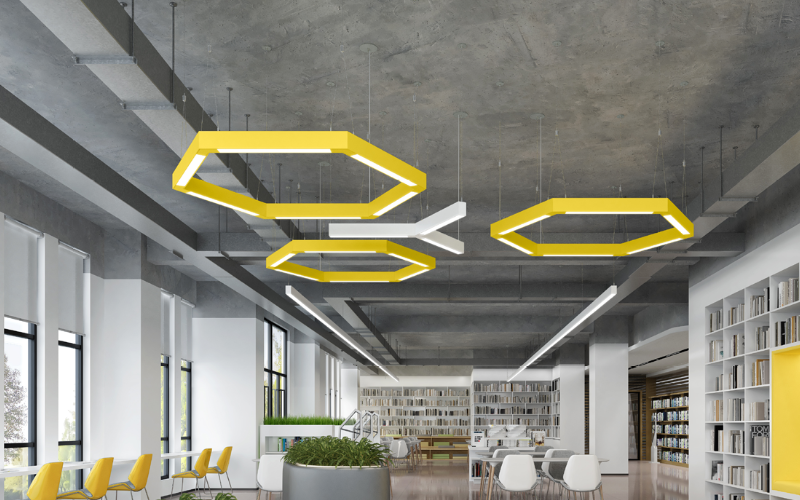

SLOT 2 linear lighting delivers a simple continuous line of light by creating brilliant illumination and exceptional visual comfort in a small form factor. Now, with the addition of NODE™, SLOT 2 expands its design versatility, enabling bold geometric layouts using standard components. These precision-engineered, non-illuminated corners make it easy to form clean 45°, 60°, 90°, 120°, and 135° angles, as well as X, Y, and T junctions, empowering designers to shape light with intention, without the need for custom solutions.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2 1/2"L: Run length (Ft)H: 3 3/4"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI80 90
- Watt(Approx)2.38 W/Ft3.14 W/Ft4.68 W/Ft6.27 W/Ft7.98 W/Ft9.85 W/Ft11.93 W/Ft13.07 W/Ftcustom
- Lumens(Approx)271 Lm/Ft367 Lm/Ft547 Lm/Ft702 Lm/Ft908 Lm/Ft1060 Lm/Ft1248 Lm/Ft1368 Lm/Ftcustom
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%Non-Dim0-10VDALI
- Controls/NetworknLight®Wireless DimmingIntegral Sensor
- Power/VoltageIntegralUNV 120-277V120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesCSAMade in USADeclareBAA
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
