OBE PENDANT - Static White.
Configure
Add to project
RESOURCES
DESCRIPTION

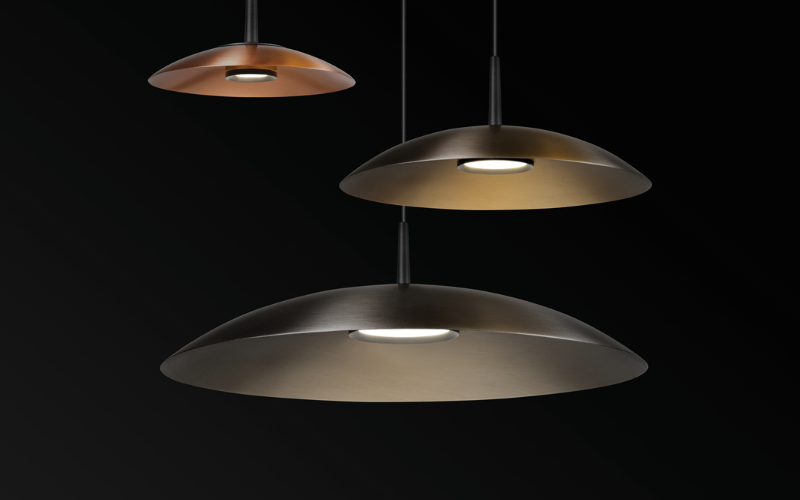

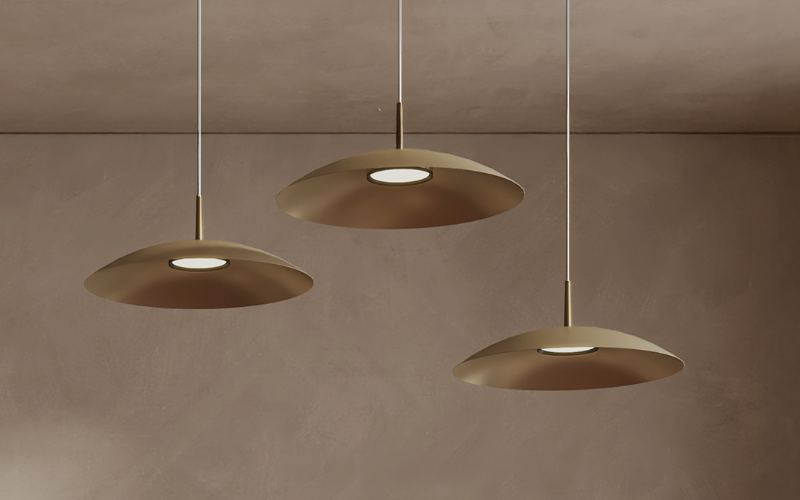

Obe is an architectural decorative luminaire designed to deliver controlled, comfortable illumination through a unified form. Defined by a gently curved shade, it moderates the light source, enhances visual comfort, and establishes a calm architectural presence.
The collection is offered in three optical variations—Opal with a High-Efficiency Lambertian Optic (HLO), Hex with a Hex louver (HEX), and Prism with a Precision Micro-Prism Optic (PMO).
The collection is offered in three optical variations—Opal with a High-Efficiency Lambertian Optic (HLO), Hex with a Hex louver (HEX), and Prism with a Precision Micro-Prism Optic (PMO).
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 8"12"16"L: 8"12"16"H: 8"12"16"
- Light SourceLED
- CCT/Color2400K or less2700K3000K3500K4000K5000K
- CRI80 90
- Watt(Approx)5.5 W11 W16.5 W
- Lumens(Approx)300 Lm600 Lm900 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)eldoLED ECO 0-10VeldoLED SOLO 0-10V
- Controls/Network
- Power/VoltageIntegralRemotePoEUNV 120-277V120V277V347V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETL
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
