MINRIP. MINEAR RING 1/2'' Pendant.
Configure
Add to project



RESOURCES
DESCRIPTION

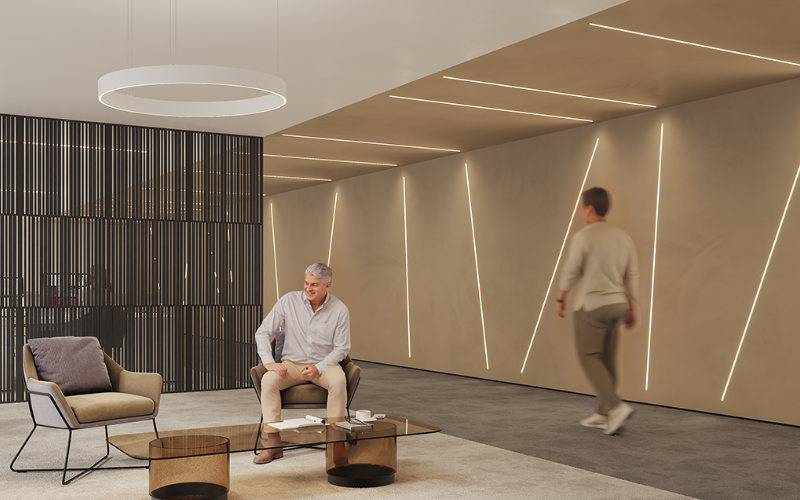

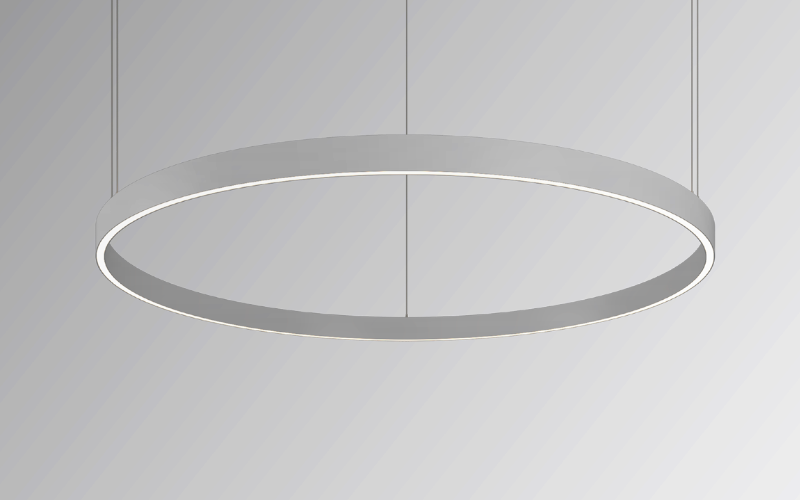

From the Minear Collection of miniature, made-to-order luminaires, the Minear Ring uses a 1/2" aperture in diameters ranging from 18" to 72", offering a circular expression that complements the linear profiles. Recessed, surface, or pendant mounted, Minear Ring provides uniform illumination framed by the softness and clarity of its rounded form—suitable for both individual installations and grouped compositions.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 18"24"36"48"60"72"L: 18"24"36"48"60"72"H: 2"4"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90
- Watt(Approx)15 W20 W30 W27.8 W40 W37 W50 W60 W55.6 W74.1 W74 W92.6 W80 W100 W111.1 W120 W111.2 W148.2 W185.2 W222.2 W
- Lumens(Approx)450 Lm600 Lm750 Lm900 Lm1000 Lm1200 Lm1500 Lm1800 Lm2000 Lm2500 Lm3000 Lm2400 Lm3600 Lm4000 Lm5000 Lm6000 Lm
- OpticsDirectDirect/IndirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%0-10VDALILutron Hi-lume EcoSystem (LDE1)eldoLED ECO 0-10VeldoLED SOLO 0-10V
- Controls/Network
- Power/VoltageIntegralRemoteUNV 120-277V120V277V347V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETL
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeMINRIP
—
