Lumenwerx

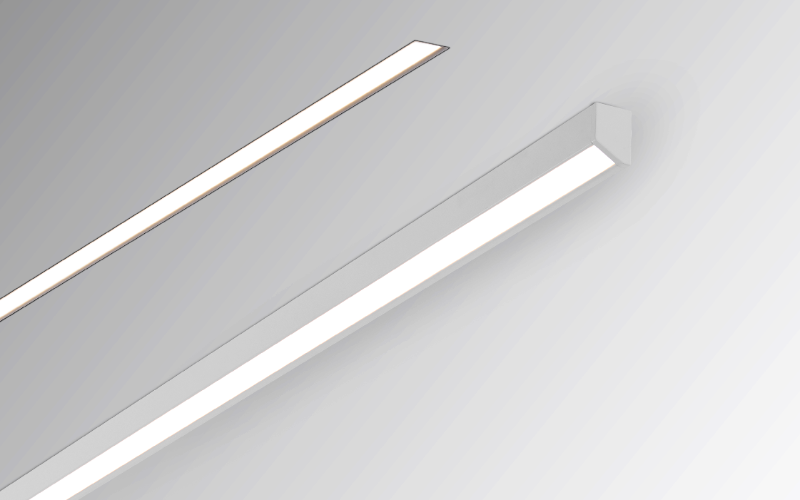

MIN05R/MIN05S/MIN05AR/MIN05AS. MINEAR LINEAR 1/2'' Recessed, Surface, Wall.
Configure
Add to project
RESOURCES
DESCRIPTION

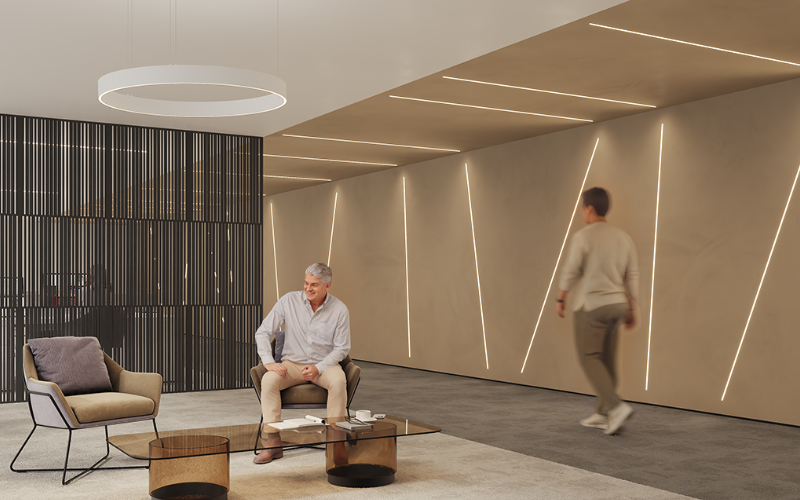

From the Minear Collection of miniature, made-to-order luminaires, the 1/2" profile balances a compact scale with increased performance and optical flexibility. Recessed or surface mounted and available with an asymmetric option, the 1/2" model supports applications requiring subtle wall-wash effects, directional emphasis, or added visual reach—while preserving the minimalist character of the Minear family.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1/2"L: Run length (inch)H: 3/4"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI80 90
- Watt(Approx)1.8 W/Ft2.4 W/Ft4.1 W/Ft
- Lumens(Approx)150 Lm/Ft200 Lm/Ft350 Lm/Ft
- OpticsDirectGeneral DiffusedAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)eldoLED ECO 0-10VeldoLED SOLO 0-10V
- Controls/Network
- Power/VoltageRemoteUNV 120-277V120V277V347V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETL
- EnvironmentDamp
- Mounting TypeCeiling SurfaceCeiling RecessedWall SurfaceWall Recessed
- HousingIC
- Housing Depth13/16 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeMIN05
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
