MIN03R/MIN03S. MINEAR LINEAR 3/8'' Recessed, Surface, Wall.
Configure
Add to project
RESOURCES
DESCRIPTION

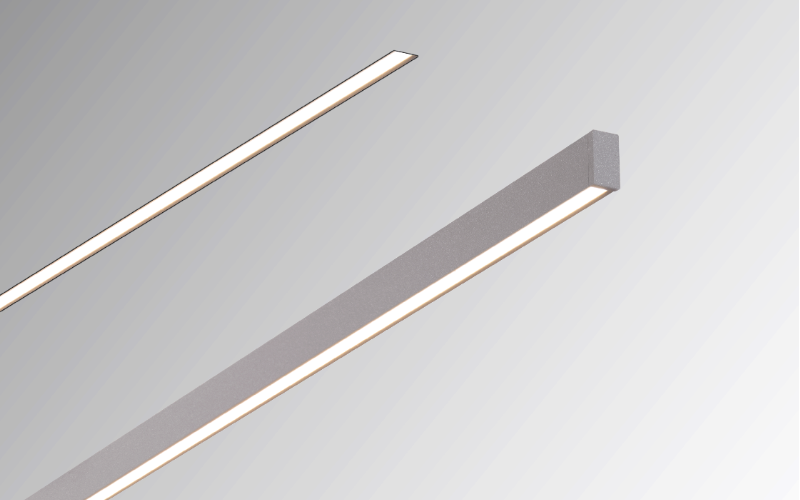

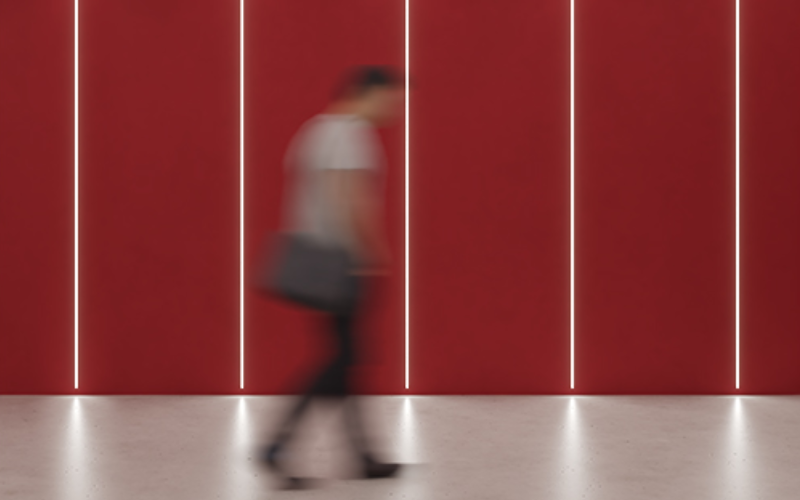

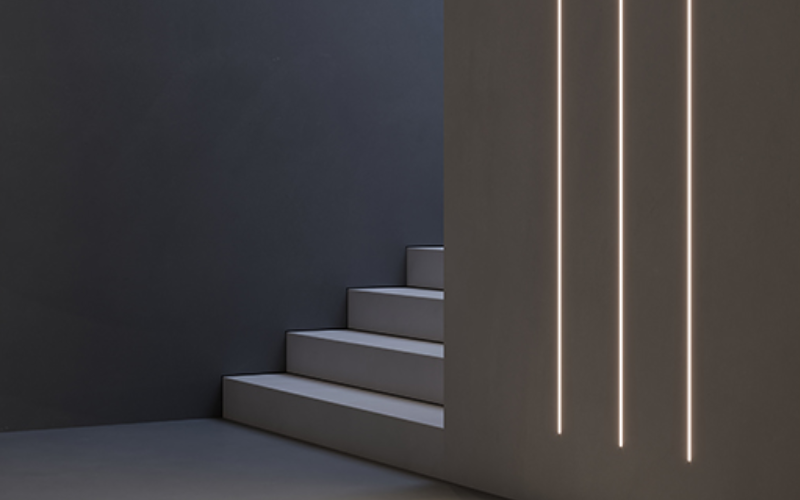

From the Minear Collection of miniature, made-to-order luminaires, the 3/8" profile is the smallest in the Minear Collection, offering a clean line of light for highly detailed or space-limited applications. Recessed or surface mounted, it is ideal for millwork, shelving, reveals, and fine architectural details, it delivers consistent output in a minimal footprint while maintaining the collection’s precise, controlled illumination.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3/8"L: Run length (inch)H: 3/4"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI80 90
- Watt(Approx)1.8 W/Ft2.4 W/Ft4.1 W/Ft
- Lumens(Approx)150 Lm/Ft200 Lm/Ft350 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)eldoLED ECO 0-10VeldoLED SOLO 0-10V
- Controls/Network
- Power/VoltageRemoteUNV 120-277V120V277V347V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETL
- EnvironmentDamp
- Mounting TypeCeiling SurfaceCeiling RecessedWall SurfaceWall Recessed
- HousingIC
- Housing Depth13/16 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeMIN03
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
