Lumenwerx

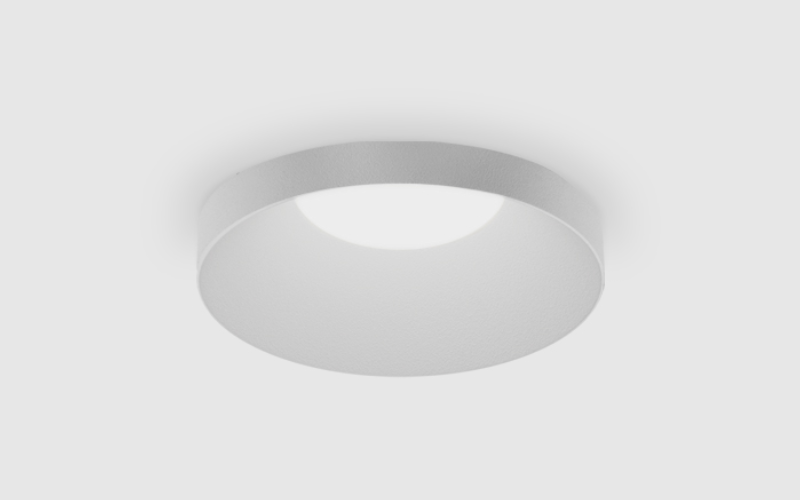

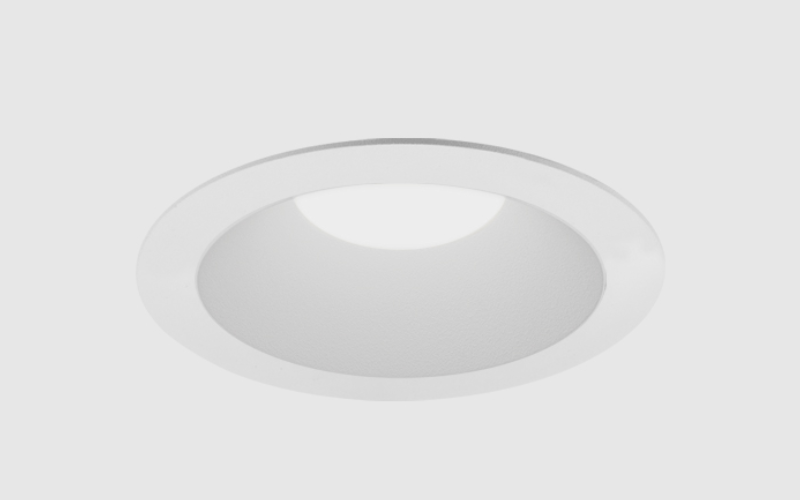

LVP3.5RR. LIVV PLUS 3.5'' DOWNLIGHT ROUND RECESSED , ADJUSTABLE, WALL WASH Static White.
Configure
Add to project
RESOURCES
DESCRIPTION
Livv Plus delivers advanced performance with expanded control capabilities and greater flexibility. Sharing the same trims as the Livv models, it is available in 2.5" and 3.5" apertures with fixed, adjustable, and wall wash distributions. A quick-connect system and below-ceiling access ensure fast, contractor-friendly installation and easy maintenance. The collection also includes Livv—downlight essentials in a clean architectural form.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4"4 1/2"L: 4 1/2"4"
- Light SourceLED
- CCT/Color2400K or less2700K3000K3500K5000K
- CRI95
- Watt(Approx)7 W10 W14 W
- Lumens(Approx)889 Lm1232 Lm1690 Lm
- OpticsDirectNarrowFloodWide FloodAsymmetric/Wash
- AdjustableAdjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)eldoLED ECO 0-10VeldoLED SOLO 0-10VDMX
- Controls/Network
- Power/VoltageIntegralRemoteUNV 120-277V120V277V347V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETL
- EnvironmentDampWet
- Mounting TypeCeiling RecessedDrywallTrimless DrywallTrimless Wood
- HousingICChicago PlenumRemodelIC Air Tight
- Housing Depth3 1/2 ''4 3/16 ''4 1/16 ''4 1/2 ''5 ''6 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLVP3.5RR-SW
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
