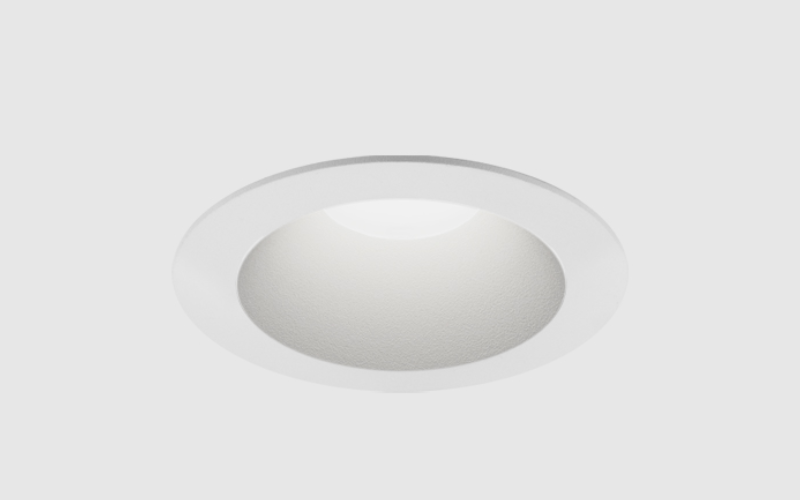

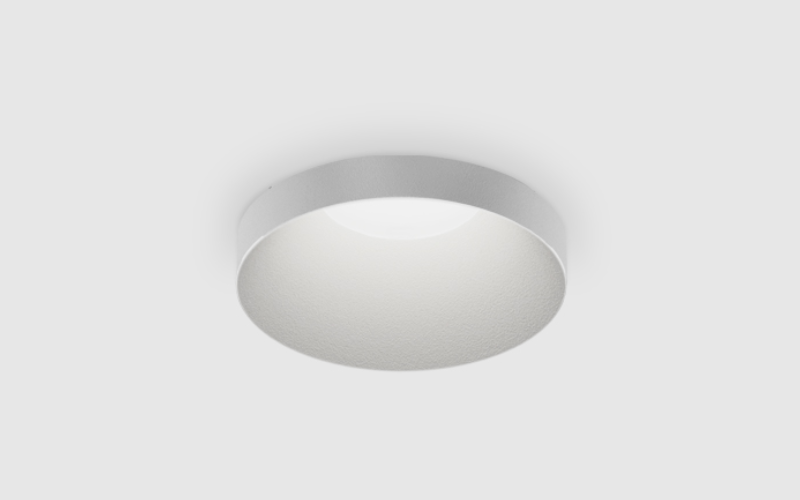

LVP2.5RR. LIVV PLUS 2.5" DOWNLIGHT ROUND RECESSED , ADJUSTABLE, WALL WASH Static White.
Configure
Add to project
RESOURCES
DESCRIPTION
Designed for advanced performance, Livv Plus delivers expanded control capabilities with greater architectural flexibility. Like our base Livv luminaires, Livv Plus offers a quick-connect system and below-ceiling access for fast, contractor-friendly installation and easy maintenance. Available in 2.5" and 3.5" apertures with fixed, adjustable, and wall wash distributions. The collection also includes Livv (The Essentials), featuring downlight essentials in a clean architectural form.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3 1/4"3 1/2"L: 3 1/2"3 1/4"
- Light SourceLED
- CCT/Color2400K or less2700K3000K3500K5000K
- CRI95
- Watt(Approx)5 W8 W12 W
- Lumens(Approx)579 Lm899 Lm1320 Lm
- OpticsDirectNarrowFloodWide FloodAsymmetric/Wash
- AdjustableAdjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)eldoLED ECO 0-10VeldoLED SOLO 0-10VDMX
- Controls/Network
- Power/VoltageIntegralRemoteUNV 120-277V120V277V347V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETL
- EnvironmentDampWet
- Mounting TypeCeiling RecessedDrywallTrimless DrywallTrimless Wood
- HousingICChicago PlenumRemodelIC Air Tight
- Housing Depth3 5/16 ''4 3/16 ''4 1/16 ''4 1/2 ''5 ''6 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
