Lumenwerx

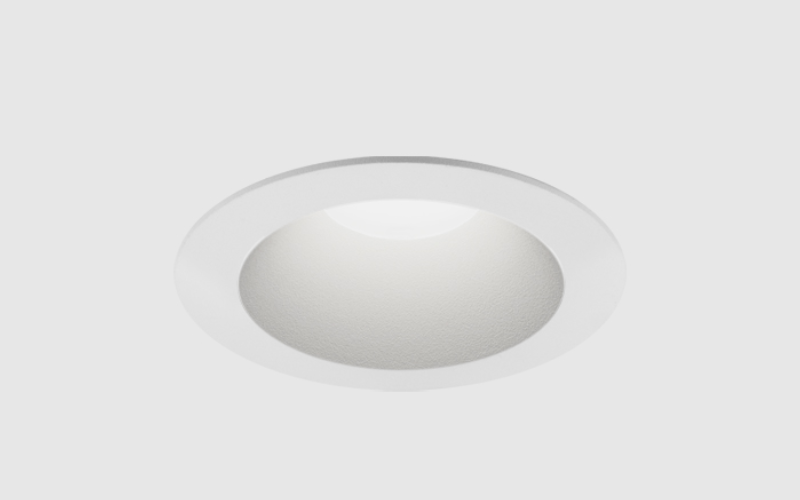

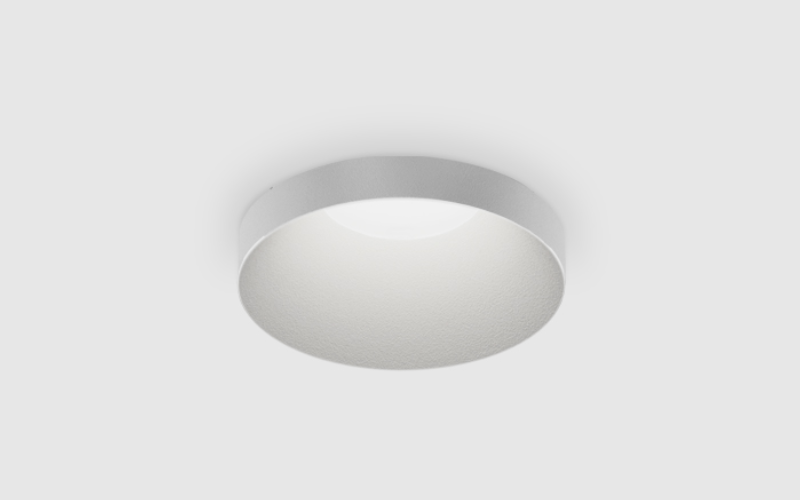

LVP2.5RR. LIVV PLUS 2.5'' DOWNLIGHT ROUND RECESSED , ADJUSTABLE, WALL WASH SOLA Dim-to-Warm and DUO Tunable White.
Configure
Add to project
RESOURCES
DESCRIPTION
Designed for advanced performance, Livv Plus delivers expanded control capabilities with greater architectural flexibility. Like our base Livv luminaires, Livv Plus offers a quick-connect system and below-ceiling access for fast, contractor-friendly installation and easy maintenance. Available in 2.5" and 3.5" apertures with fixed, adjustable, and wall wash distributions. The collection also includes Livv (The Essentials), featuring downlight essentials in a clean architectural form.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3 1/4"3 1/2"L: 3 1/2"3 1/4"
- Light SourceLED
- CCT/Color2700K Dim to Warm3000K Dim to WarmTunable White
- CRI95
- Watt(Approx)5 W10 W8 W12 W
- Lumens(Approx)390 Lm694 Lm888 Lm989 Lm
- OpticsDirectWide FloodAsymmetric/Wash
- AdjustableAdjustable
- DimmingDim to 3-10%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALIDMX
- Controls/Network
- Power/VoltageIntegralRemoteUNV 120-277V120V277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETL
- EnvironmentDampWet
- Mounting TypeCeiling RecessedDrywallTrimless DrywallTrimless Wood
- HousingICChicago PlenumRemodelIC Air Tight
- Housing Depth3 5/16 ''4 3/16 ''4 1/16 ''4 1/2 ''5 ''6 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLVP2.5RR-SOLA-DUO
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
