Lumenwerx

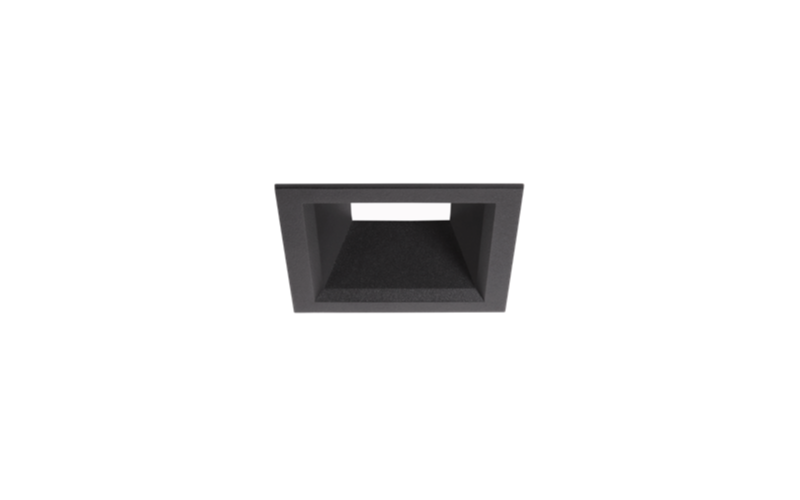

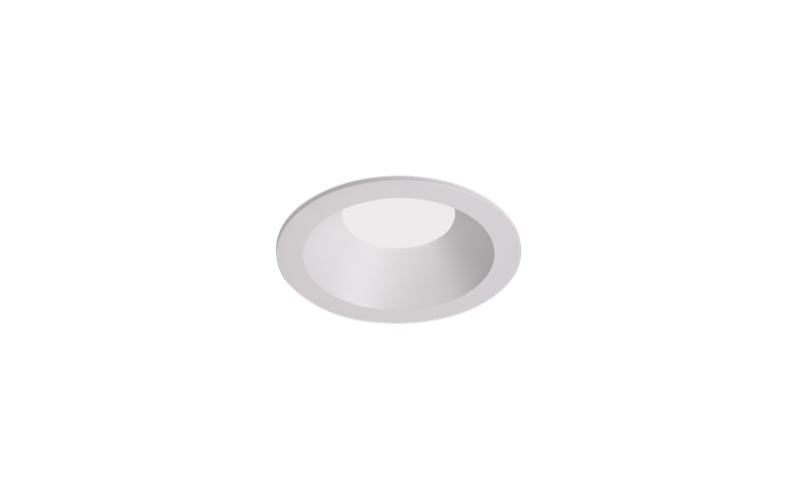

AES4R. AERA SHALO 4'' RECESSED SOLA Dim-to-Warm and DUO Tunable White.
Configure
Add to project
RESOURCES
DESCRIPTION
Aera Shalo 4" brings full Aera performance and visual comfort to tight plenums and crowded ceilings. At just 2" tall, it installs easily without sacrificing precision or control. Aera Shalo's Light Module uses innovative CoreConnect™ Technology, a magnetic, wire-free system that enables fast, secure connection and complete field serviceability, from trims to optics to distribution swaps. Available in multiple trim styles and IP44-rated options, Aera Shalo delivers architectural consistency across the Aera Collection with sustainable, future-ready modular design.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4"L: 4"
- Light SourceLED
- CCT/Color2700K Dim to Warm3000K Dim to WarmTunable White
- CRI90
- Watt(Approx)14 W
- Lumens(Approx)
- OpticsDirectMediumFloodWide Flood
- Adjustable
- DimmingDim to 3-10%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALIDMX
- Controls/Network
- Power/VoltageIntegralRemotePoEUNV 120-277V120V277V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesETL
- EnvironmentDampWet
- Mounting TypeCeiling RecessedTrimless DrywallT-Grid Ceiling
- HousingNew ConstructionICChicago Plenum

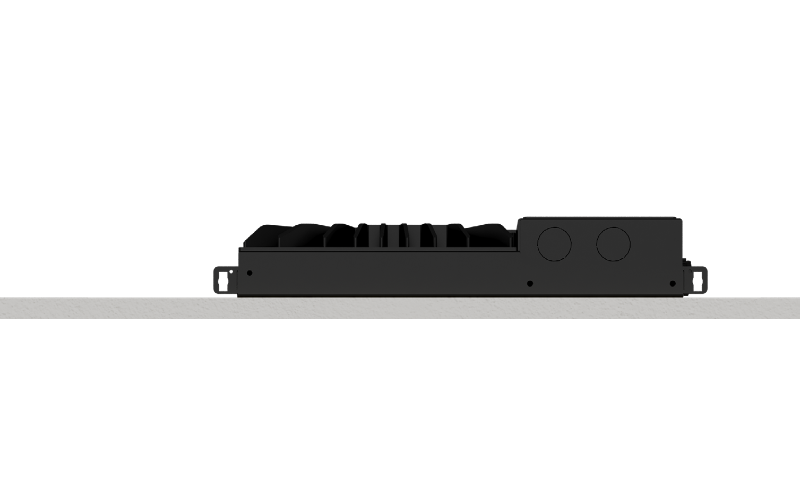

- Housing Depth2 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeAES4R-SOLA-DUO
