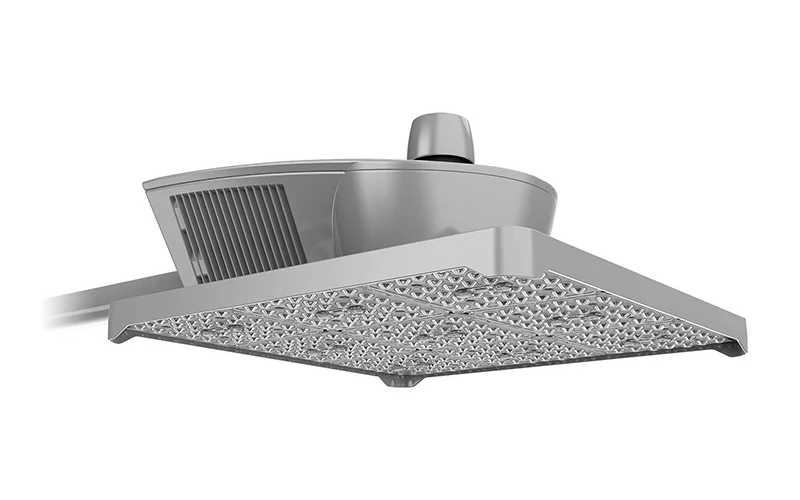

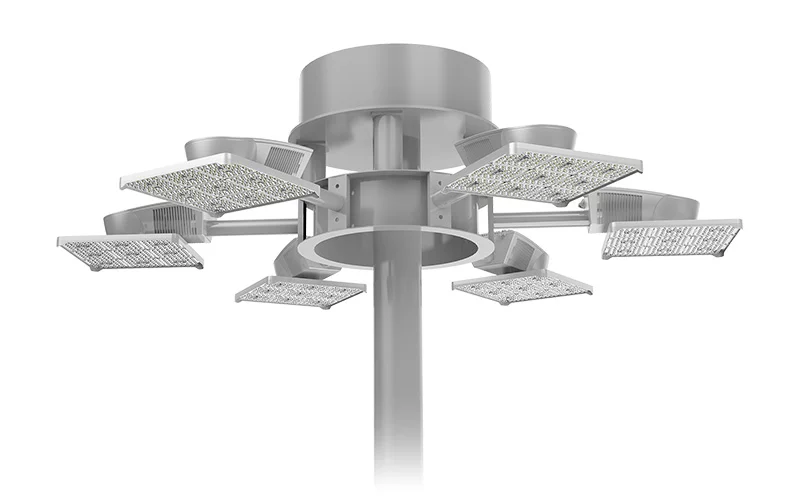

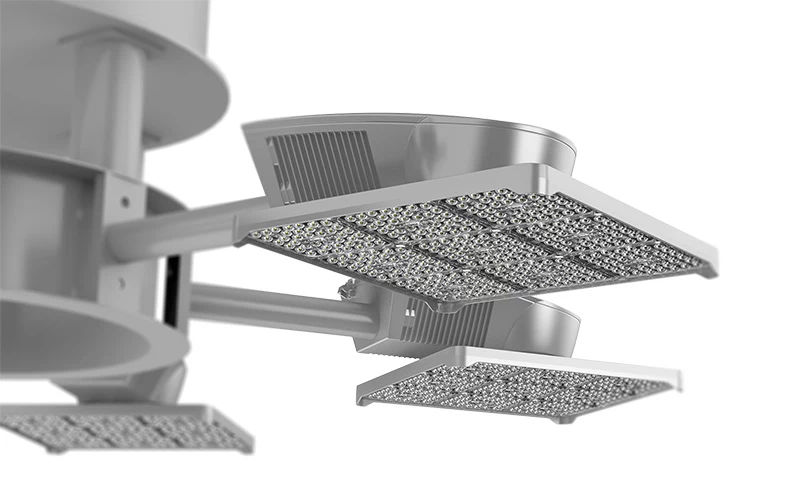

HFP. HighFocus Plus High mast luminaire.
Configure
Add to project
RESOURCES
DESCRIPTION
Lumec HighFocus Plus LED Highmast luminaires utilizes the latest in LED technology to deliver over 139,000 lumens with efficacies reaching 191 lumens per watt. Connectable ready, and available in mutiple lumen packages, color temperatures, and a complete array of optical distributions. HighFocus Plus is designed with 41% lower weight than previous generations, allowing for easier installations for the contractor
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 22.5"L: 26.9"H: 10.1"
- Light SourceLED
- CCT/Color3000K4000K5000K
- CRI70
- Watt(Approx)200 W195 W270 W300 W350 W255 W330 W400 W405 W450 W485 W460 W385 W425 W515 W545 W610 W650 W595 W630 W730 W820 W
- Lumens(Approx)34507 Lm36748 Lm47285 Lm47507 Lm51393 Lm60791 Lm67961 Lm71179 Lm60682 Lm71810 Lm77126 Lm82240 Lm87984 Lm92924 Lm82456 Lm77507 Lm88937 Lm103663 Lm113779 Lm105306 Lm109251 Lm124477 Lm136443 Lm
- OpticsDirectType IType IIType IIIType IVType V
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277V120V208V220-240V277VUNC 347-480V347V480V
- Integral Emergency
- Lumen Maintenance102000 h
- CertificatesUL/CULDLC*BAA
- EnvironmentIP66
- Mounting TypePole/Mast Arm
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeHFP
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
