Lumec (Genlyte Solutions)

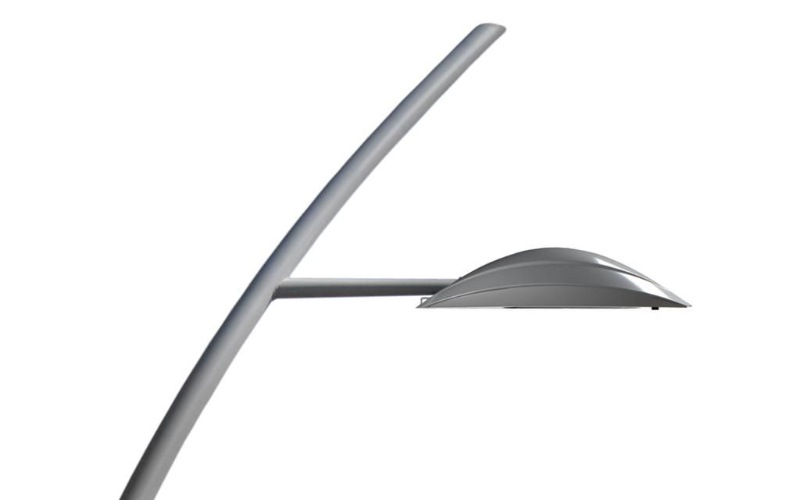

CPLM. Capella Roadway (medium).
Configure
Add to project



RESOURCES
DESCRIPTION
Respectful of the night sky with photometric performance at its finest. Inspired by the splendor of movement, the LED Capella is one of the most adaptable luminaires on the market. With its graceful curves and sweeping lines it contributes to the beautification of any environment and enhances the visual impact of any project. The Capella comes in two sizes to maximize its potential and appeal. The smaller version is perfect for lighting alleyways, pathways, sidewalks and small roadways while the larger version is ideal for city streets and boulevards. The two complement each other and can be used in tandem to add a measure of grace and fluidity to any area, big or small.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 16 1/4"L: 42"H: 9 1/4"
- Light SourceLED
- CCT/Color3000K4000K
- CRI70
- Watt(Approx)55 W70 W80 W90 W108 W110 W145 W135 W180 W160 W
- Lumens(Approx)7392 Lm9857 Lm10603 Lm13373 Lm14138 Lm12100 Lm14520 Lm17831 Lm17356 Lm21888 Lm20826 Lm
- OpticsDirectType IIType IIIType IVType V
- Adjustable
- DimmingDim to 3-10%0-10VDALI
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277VUNC 347-480V
- Integral Emergency
- Lumen Maintenance100000 h
- CertificatesUL/CUL
- EnvironmentIP66
- Mounting TypePole/Mast Arm
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeCPLM-G3
—
