Lumec (Genlyte Solutions)

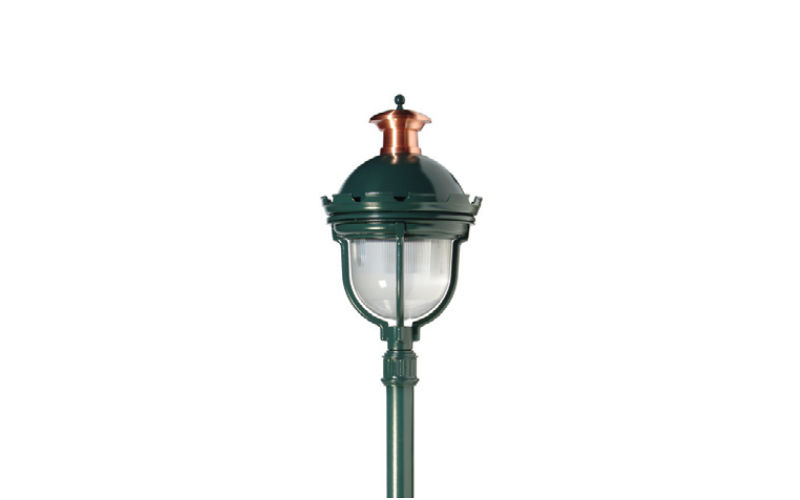

AT10/20/30/40. Ancestra Post Top.
Configure
Add to project



RESOURCES
DESCRIPTION
Its’ eye-catching design will set your project apart. The Lumec Ancestra LED post top and pendant luminaires present a new twist on an old-fashioned design. By combining the best aspects of past and present forms with the best that modern technology has to offer, the Ancestra luminaires epitomize Lumec’s design philosophy beautifully: to combine the best technology with an elegant design. Equipped with an optional copper cupola, a decorative cage, and crown accents, the result is a luminaire that complements any project with rustic flair and modern appeal without sacrificing photometric quality.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 21"23 1/4"24 1/2"22"L: 21"23 1/4"24 1/2"22"H: 40"
- Light SourceLED
- CCT/Color2400K or less3000K4000K
- CRI70
- Watt(Approx)37 W54 W73 W80 W
- Lumens(Approx)4413 Lm6330 Lm6619 Lm7983 Lm9495 Lm
- OpticsDirectType IIType IIIType IVType V
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277V347V480V
- Integral Emergency
- Lumen Maintenance100000 h
- CertificatesUL/CUL
- EnvironmentIP66
- Mounting TypePole/Post Top
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
