Ledalite (Genlyte Solutions)
TV. TruVue Architectural Linear Wall.
Configure
Add to project
RESOURCES
DESCRIPTION

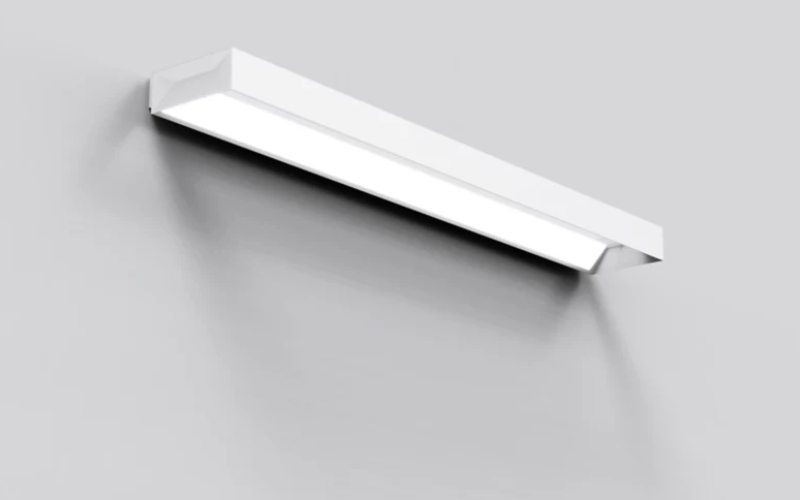

Ledalite TruVue Wall is a distinctive luminaire, that highlights the architectural space with an open view to the structure. A unique optical design delivers multiple direct / indirect distributions with room side or wall side asymmetric throws for lighting a variety of different applications from a uniform aesthetic.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 7.8"L: 49.2"73.2"97.3"Run length (Ft)H: 2.75"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000KTunable White
- CRI90
- Watt(Approx)5 W9 W14 W18 W29 W23 W
- Lumens(Approx)500 Lm1000 Lm1500 Lm2000 Lm3000 Lm2500 Lm
- OpticsDirect/IndirectIndirect/DirectGeneral Diffused
- Adjustable
- DimmingDim to 1%Dim to <1%0-10VDALILutron EcoSystem 5 (LDE5)
- Controls/NetworkBluetoothWireless DimmingIntegral Sensor
- Power/VoltageRemoteUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesUL/CULDeclare
- EnvironmentDamp
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeTV-2
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
