Ledalite (Genlyte Solutions)
TV. TruVue Architectural Linear Suspended.
Configure
Add to project
RESOURCES
DESCRIPTION

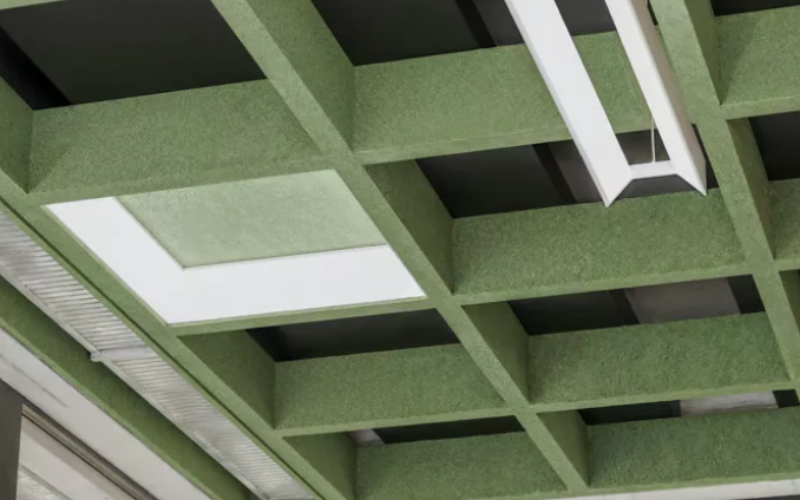

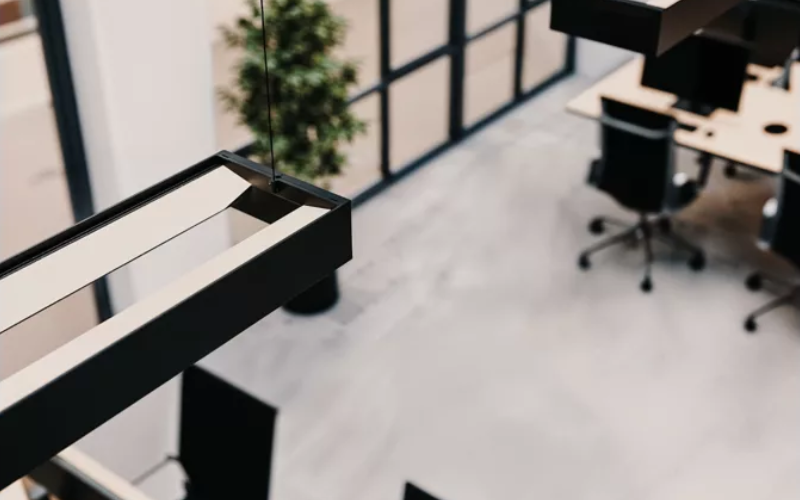

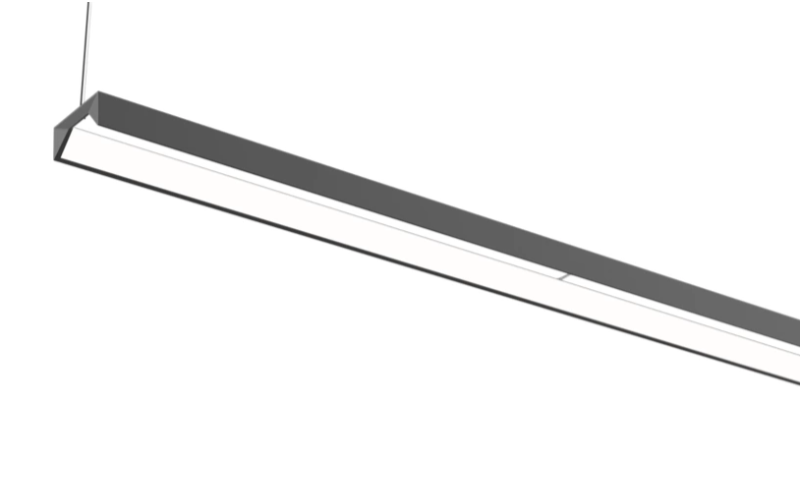

Ledalite TruVue Suspended is a distinctive luminaire, that highlights the architectural space with an open view to the structure above. A unique optical design delivers multiple direct / indirect distributions for lighting a variety of different applications from a uniform aesthetic.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 7"L: 49.2"73.2"97.3"Run length (Ft)H: 2.75"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000KTunable White
- CRI90
- Watt(Approx)9 W18 W27 W36 W46 W56 W
- Lumens(Approx)1000 Lm2000 Lm3000 Lm5000 Lm4000 Lm6000 Lm
- OpticsDirect/IndirectIndirect/DirectGeneral Diffused
- Adjustable
- DimmingDim to 1%Dim to <1%0-10VDALILutron EcoSystem 5 (LDE5)
- Controls/NetworkLutron®BluetoothWireless DimmingIntegral Sensor
- Power/VoltageRemoteUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesUL/CULDeclare
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeTV-0
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
