Ledalite (Genlyte Solutions)

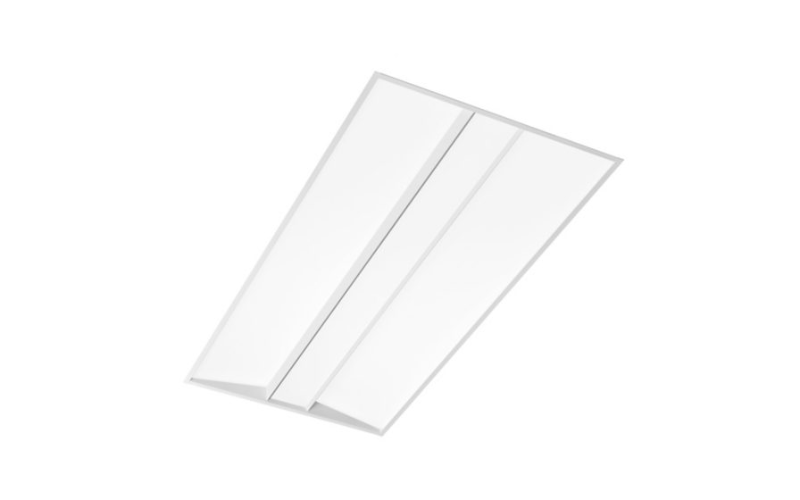

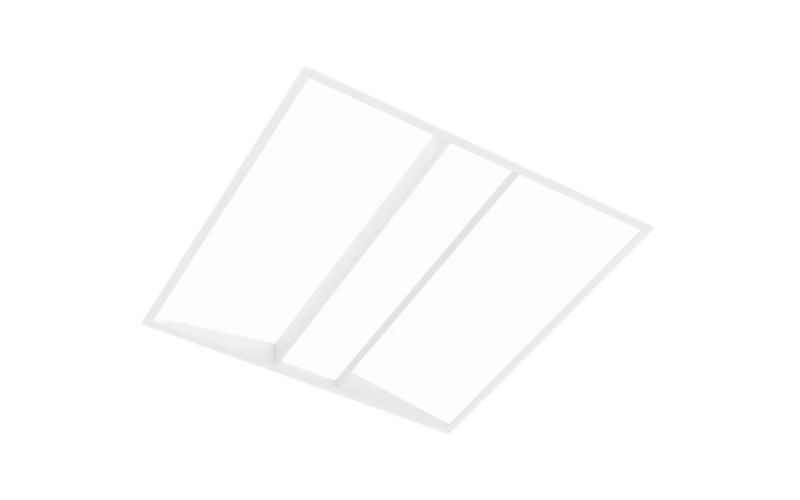

SH. Shine Duo Architectural Recessed 2'x2', 2'x4', and 1'x4'.
Configure
Add to project
RESOURCES
DESCRIPTION
Shine Duo is a highly efficacious, fully luminous LED luminaire with brilliant AccuRender 90 CRI color rendering. It delivers pure white light—free of glare, color shifts, hot spots or striations.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 Ft2 FtL: 2 Ft4 Ft
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000KTunable White
- CRI90
- Watt(Approx)15 W19 W27 W23 W40 W36 W32 W47 W43 W65 W60 W56 W52 W
- Lumens(Approx)1905 Lm2866 Lm2382 Lm4800 Lm4315 Lm3830 Lm3345 Lm6792 Lm6253 Lm5710 Lm8379 Lm7855 Lm7326 Lm
- OpticsDirectGeneral DiffusedBatwing
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%0-10VDALILutron Hi-lume EcoSystem (LDE1)Xitanium SR
- Controls/NetworkLutron®BluetoothIntegral Sensor
- Power/VoltageIntegralUNV 120-277V347V
- Integral Emergency
- Lumen Maintenance215000 h
- CertificatesETLDeclare
- EnvironmentDamp
- Mounting TypeCeiling RecessedSlot T-Grid Ceiling
- HousingNew ConstructionChicago Plenum
- Housing Depth3 15/16 ''3 7/8 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeSH
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
