Juno (Acuity Brands Lighting)

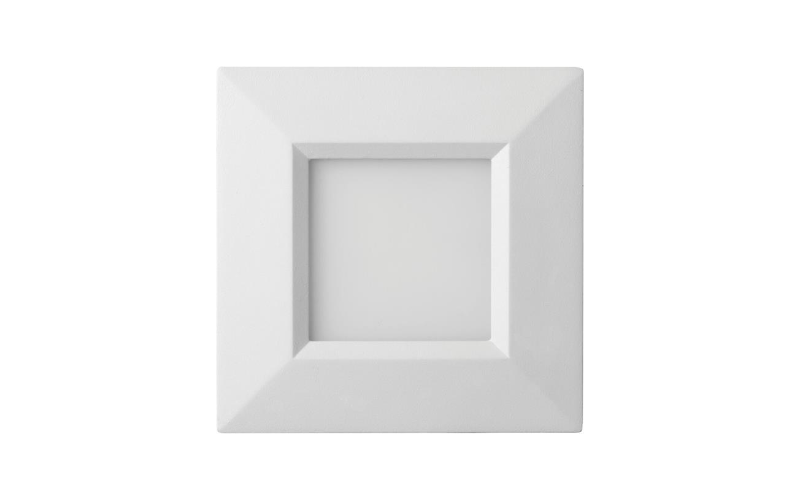

WF4/WF6. Contractor Select WF4 & WF6 ALO + SWW5 4'' & 6'' Flat LED Square Wafers.
 Configure
 Add to project
DESCRIPTION
The 4-inch and 6-inch Square Wafer™ Downlights feature a slim, canless design that installs directly into the ceiling eliminating the need for traditional recessed housings. They provide an all-in-one solution featuring five (5) switchable white color temperature options and three (3) adjustable lumen output settings all controlled by switches located directly on the fixture – giving you the equivalent of 15 products in one! Both the fixture and driver box are IC rated, allowing them to be installed in direct contact with insulation and can fit into as little as 2” of plenum. They are wet location listed, making them ideal for use in a breadth of indoor and outdoor residential, hospitality, light commercial and multifamily applications.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 4.75"6.7"
    L: 4.75"6.7"
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000K5000KField Select CCT
  • CRI
    90
  • Watt(Approx)
    9 W13 W
  • Lumens(Approx)
    450 Lm550 Lm750 Lm650 Lm850 Lm1000 Lm
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%TRIAC/Forward/Leading
  • Controls/Network
  • Power/Voltage
    Integral120V
  • Integral Emergency
  • Lumen Maintenance
    50000 h
  • Certificates
    CSAT24*Energy Star*
  • Environment
    Wet
  • Mounting Type
    Ceiling RecessedT-Grid Ceiling
  • Housing
    IC
  • Housing Depth
    1.1 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
