EXO Outdoor Lighting (Current)
SWG. SLING PIVOT SWITCHABLE WALL PACK.
Configure
Add to project
RESOURCES
DESCRIPTION

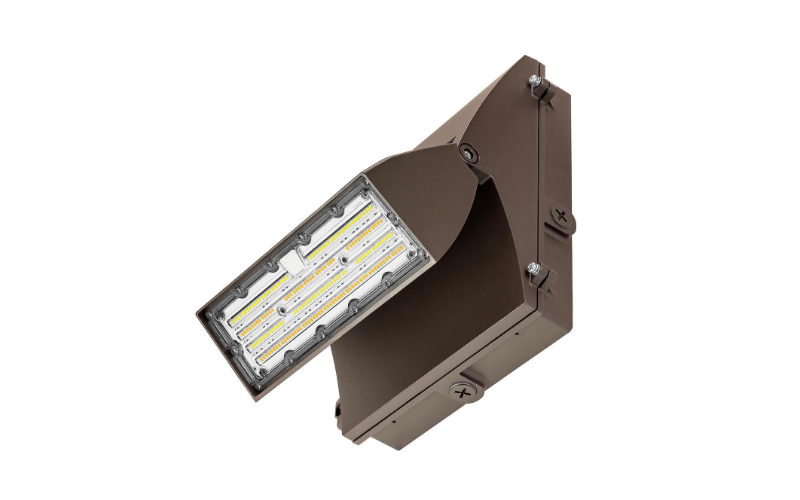

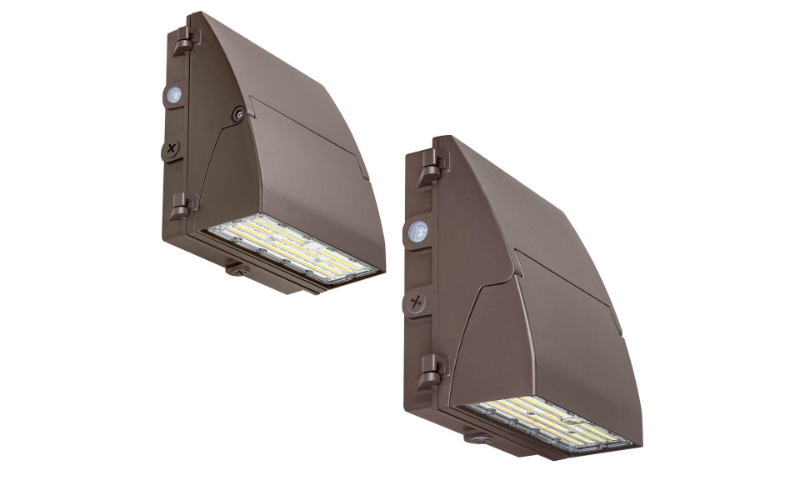

Sling Pivot Wall Mount is a versatile building mount luminaire available in two sizes, featuring adjustable 30˚ LED array for customized target illumination. Switchable CCT (3K, 4K, 5K) and wattages from 30 to 120. Photocontrol for dusk-to-dawn operation, four conduit hubs and integral level for contractor friendly installation.
- Beam angle adjustable up to 30 degress
- Field switchable lumens and LED color temperature (3000K, 4000K, 5000K), 80 CRI
- Up to 153 lumens per watt
- Photocell standard on all sizes, which can easily be disabled
- Emergency 7W battery back up available (30-70W version only)
- Integral level for contractor friendly mounting
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 5.79"7.17"L: 10.81"H: 11.85"13.49"
- Light SourceLED
- CCT/Color3000K4000K5000KField Select CCT
- CRI80
- Watt(Approx)30-50 W30-70 W80-120 Wswitchable
- Lumens(Approx)4400-7230 Lm4500-9477 Lm11699-17152 Lmswitchable
- OpticsDirectType IV
- Adjustable
- Dimming
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance100000 h
- CertificatesUL/CUL
- EnvironmentIP66
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
