H. E. Williams, Inc.

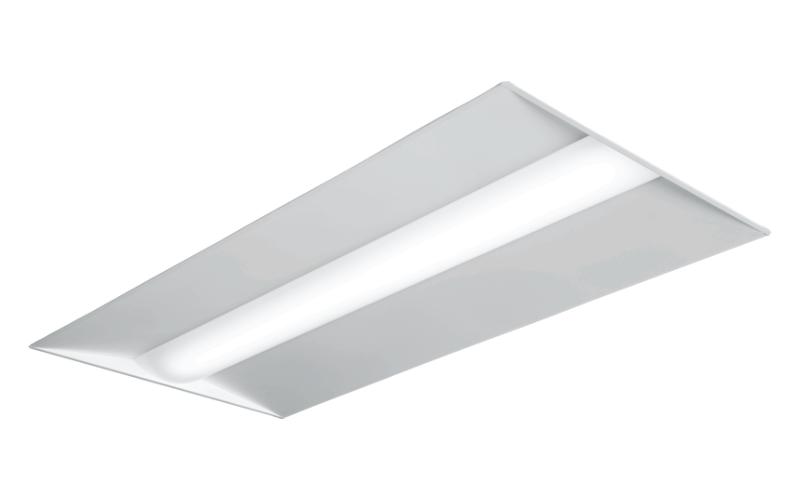

PT-MET. LED Shallow Plenum Troffer.
Configure
Add to project
RESOURCES
DESCRIPTION
- Ultra slim 2-3/8" for minimal plenum space
- Room-side accessible for maintenance
- Uniform ambient illumination
- Companion surface and retrofit kit preserve continuity
- Optional anti-microbial finish suppresses the spread of dangerous micro-organisms, mold, and bacterial growth
- HE option delivers superior efficacies up to 173 lm/W
- IC-rated for direct contact with insulation
- Heavy duty C.R.S. construction
- Round or square diffuse ribbed acrylic lens options enhance the space
- Quick-wire access plate in back of fixture housing for easy attachment of incoming power supply
- 1x4, 2x2, and 2x4 sizes available
- All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
- Support human-centric design with adaptive, individualized lighting using tunable white light
- DLC Compliant
- Build America, Buy America and Buy American Act compliant
- Wireless in-fixture control solutions available
- Made Right Here® in the USA
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2 FtL: 2 Ft4 Ft
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI80 90
- Watt(Approx)21.5 W28.5 W32.2 W36.7 W41.6 W45.5 W50.2 W66.6 W83.7 W
- Lumens(Approx)2633 Lm4343 Lm3782 Lm5207 Lm6059 Lm5078 Lm6181 Lm9060 Lm11086 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Non-Dim0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance72000 h
- CertificatesCSAMade in USABAA
- EnvironmentAntimicrobial FinishDamp
- Mounting TypeCeiling RecessedT-Grid Ceiling
- HousingICChicago Plenum
- Housing Depth2.36 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timePT-MET
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
