H. E. Williams, Inc.

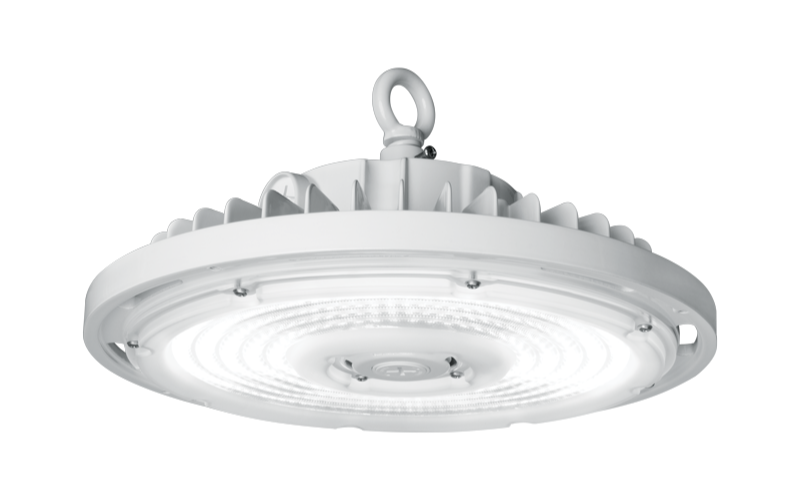

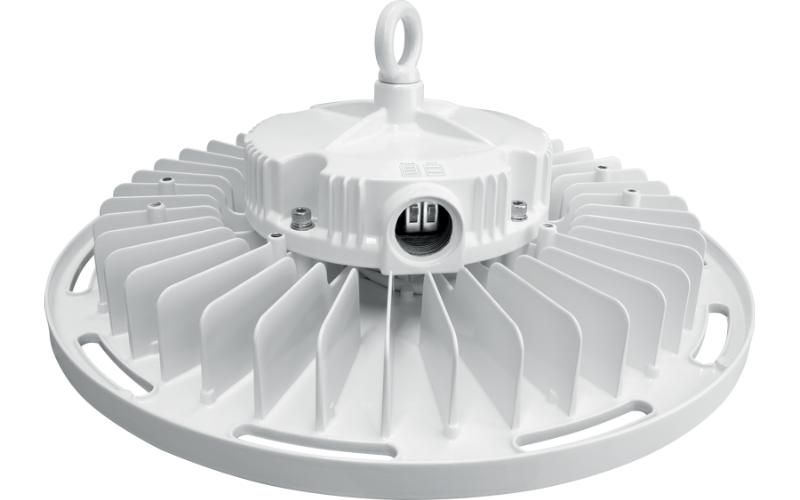

GFR. FieldSELECT Round High Bay.
Configure
Add to project
RESOURCES
DESCRIPTION
- Easily change the color temperature and lumen output on-site with built-in switches, providing ultimate flexibility
- Suited for high-ceiling spaces such as warehouses, cold storage, manufacturing, and gymnasiums
- IK09 impact-resistant housing withstands contact from debris and equipment
- IP65 rated against dust and water ingress
- 6kV integrated surge protection maintains operation through voltage spikes

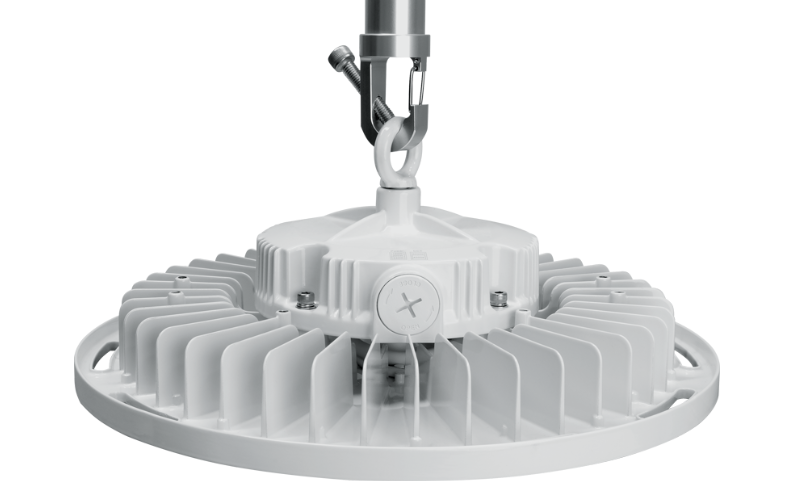

- Included eyebolt for immediate suspension mounting out of the box
- Optional surface mount yoke bracket allows up to 180° of aiming adjustability
- Reflector, sensor, and battery backup options available
- High-performance up to 167 lm/W
- High efficacies up to 167 lm/W for greater energy savings
- DLC Compliant
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 10 5/8"13"L: 10 5/8"13"H: 5 1/2"5 5/8"
- Light SourceLED
- CCT/Color4000K5000KField Select CCT
- CRI80
- Watt(Approx)97 W118 W150 W148 W196 W236 Wswitchable
- Lumens(Approx)15522 Lm18218 Lm21802 Lm23920 Lm29953 Lm34621 Lmswitchable
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral EmergencyEM Integral
- Lumen Maintenance146000 h
- CertificatesUL/CULDLC*
- EnvironmentIP65
- Mounting TypePendantYoke
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeGFR
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
