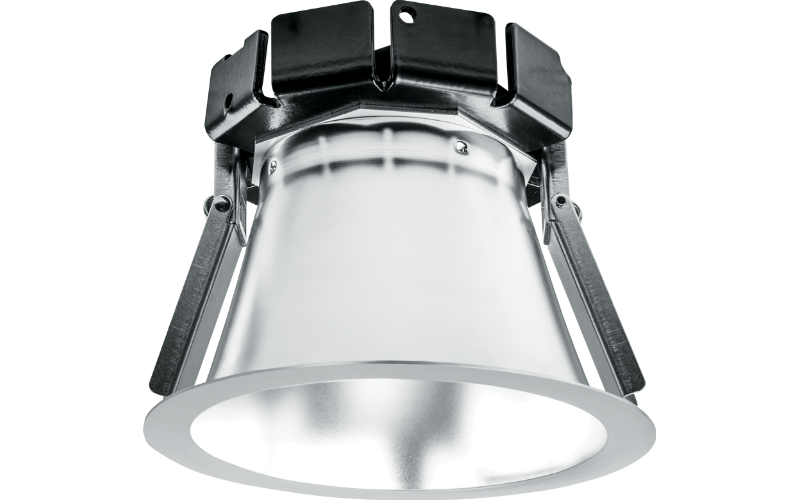

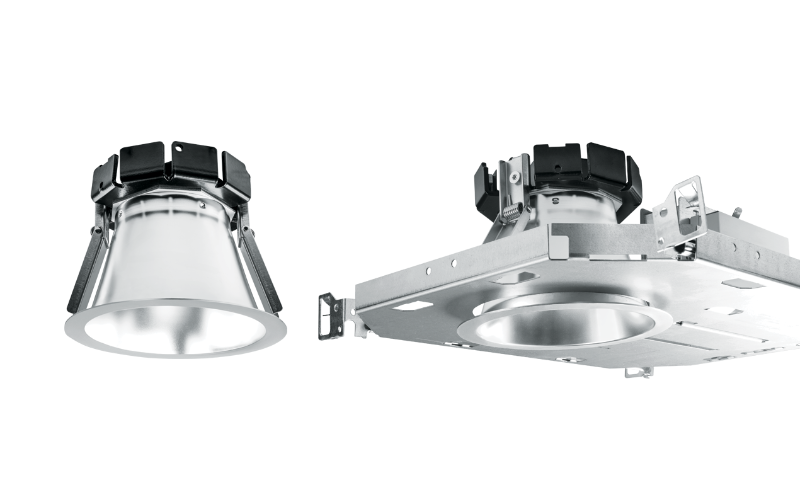

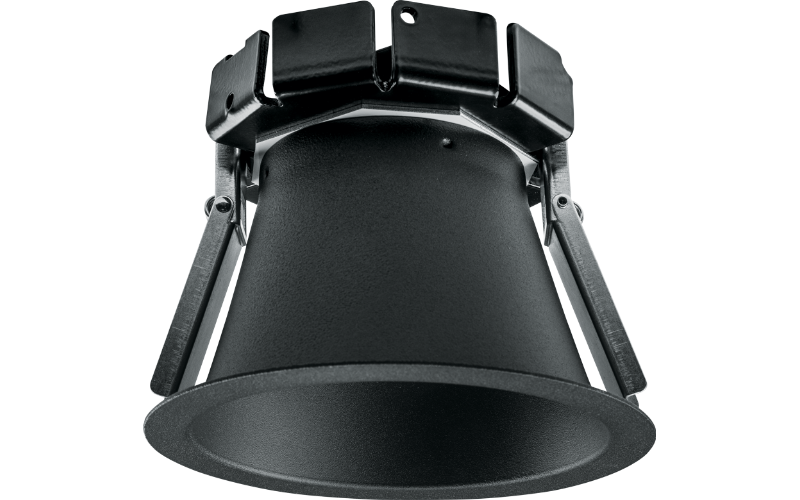

4LDR. LED 4″ Lite Downlight – Round.
Configure
Add to project
RESOURCES
DESCRIPTION
- Simple and quick installation in new construction or remodel applications
- Rated for direct contact with insulation
- Heavy-duty mounting springs secure fixture
- Maximize energy savings with efficacies up to 120 lm/W
- Top diffuser in trim enhances uniformity and minimizes glare
- Low UGR meets LEED and WELL requirements
- Build America, Buy America and Buy American Act compliant
- Made Right Here® in the USA
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4 3/4"L: 4 3/4"
- Light SourceLED
- CCT/Color3000K3500K4000K
- CRI80 90
- Watt(Approx)9.3 W13.8 W17 W26 W
- Lumens(Approx)1017 Lm1534 Lm2033 Lm3018 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance70000 h
- CertificatesETLMade in USABAA
- EnvironmentDamp
- Mounting TypeCeiling RecessedT-Grid Ceiling
- HousingNew ConstructionICChicago PlenumRemodelAir Tight
- Housing Depth5 1/16 ''7 7/8 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead time4LDR
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
