Gotham Lighting (Acuity Brands Lighting)

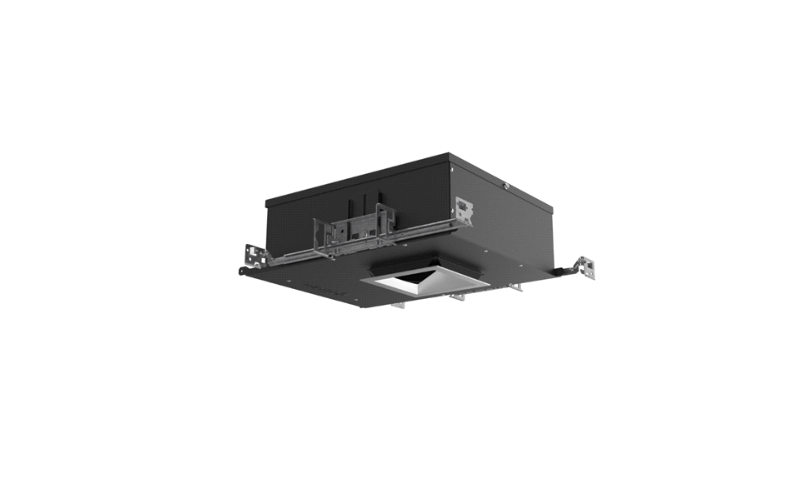

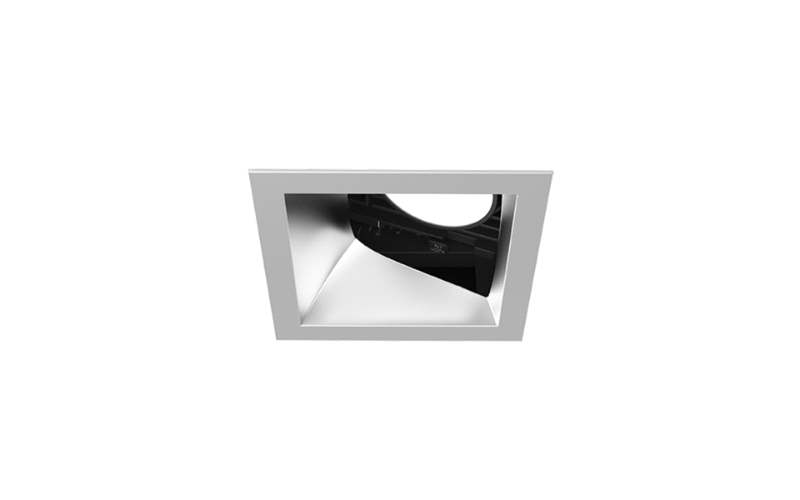

IVO4SQ. IVO™ 4" Square Adjustable New Construction.
Configure
Add to project
RESOURCES
DESCRIPTION
The IVO™ adjustable downlight delivers a crisp, focused punch of light that adds depth, drama, and contrast to define the experience of a space. Engineered for the highest standard of visual comfort to maintain a quiet ceiling aesthetic with no glare or flash, even at full tilt. From seamless integration to effortless installation, this adjustable is built to shape mood, draw attention, and bring emotional depth to the design.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4"L: 4"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI80 90 95
- Watt(Approx)5.1 W7.8 W10.6 W16.5 W22.8 W27.7 W34.3 W
- Lumens(Approx)526 Lm762 Lm1001 Lm1557 Lm2049 Lm2726 Lm3255 Lm
- OpticsDirectNarrowMediumFloodWide Flood
- AdjustableAdjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALIEldoLED 0-10V/DALIDMX
- Controls/NetworknLight®
- Power/VoltageIntegralUNV 120-277V120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance55000 h
- CertificatesCSARoHS
- EnvironmentShowerWetIP65
- Mounting TypeCeiling RecessedDrywallT-Grid CeilingWood
- HousingNew ConstructionChicago PlenumIC Air Tight
- Housing Depth4.5 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeIVO4SQ-ADJ
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
