Gardco (Genlyte Solutions)

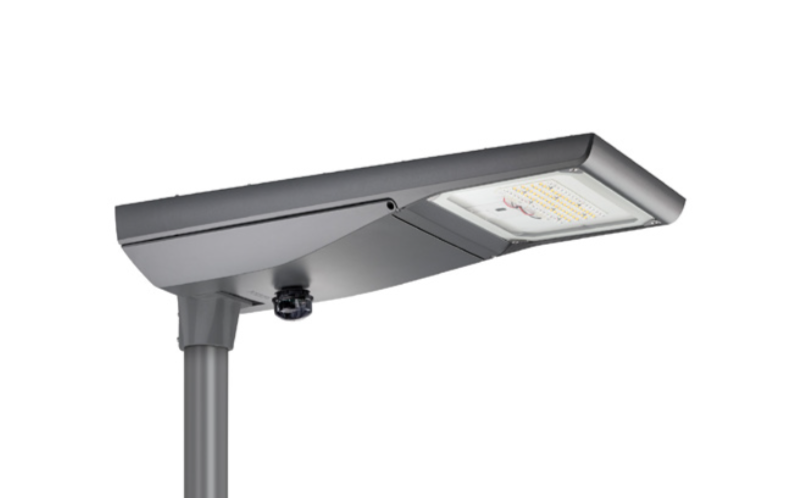

VGP726. SolarForm Gen 3 Hybrid/Grid-Smart Solar Powered System.
Configure
Add to project


RESOURCES
DESCRIPTION
SolarForm Gen 3 Hybrid is an integrated solar lighting solution designed to provide high-quality illumination and reliable performance. It features an LED light integrated with a solar photovoltaic panel, a battery, and a smart controller, simplifying specification, sales, installation, configuration, and maintenance processes. Equipped with field-configurable operating profiles tailored to night activities and expected solar energy available. This solution offers a reliable lighting option for areas where electricity is not reliable or costly. The system operates primarily on solar power and battery, seamlessly switching to the grid when solar irradiance or battery capacity is insufficient, ensuring uninterrupted illumination throughout the night.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 41.6"L: 19"H: 6"
- Light SourceLED
- CCT/Color2700K3000K4000K
- CRI70
- Watt(Approx)11 W19 W25 W29 W35 W43 W49 W55 W
- Lumens(Approx)2000 Lm1927 Lm3057 Lm3913 Lm4769 Lm5613 Lm6867 Lm7694 Lm8516 Lm
- OpticsDirectType IIType IIIType IVType V
- Adjustable
- Dimming
- Controls/NetworkBluetoothIntegral Sensor
- Power/VoltageSolar
- Integral EmergencyEM Integral
- Lumen Maintenance100000 h
- CertificatesCERoHS
- EnvironmentIP66
- Mounting TypePole/Mast Arm
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeVGP726-HY-BLE
—
