Gardco (Genlyte Solutions)

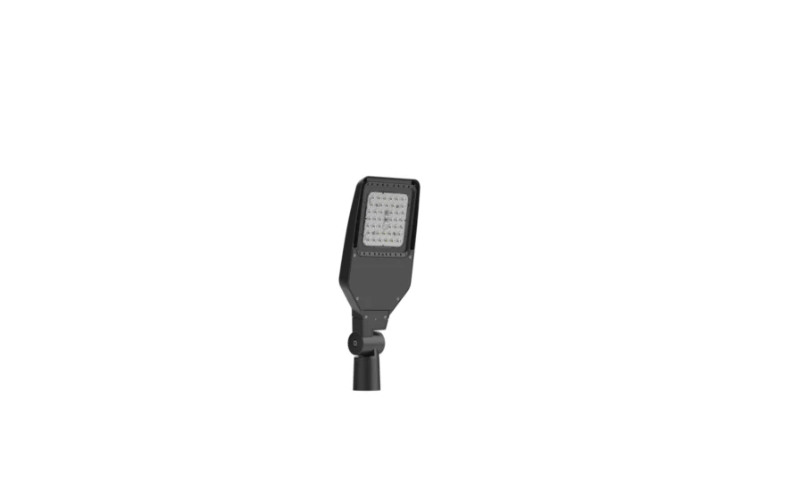

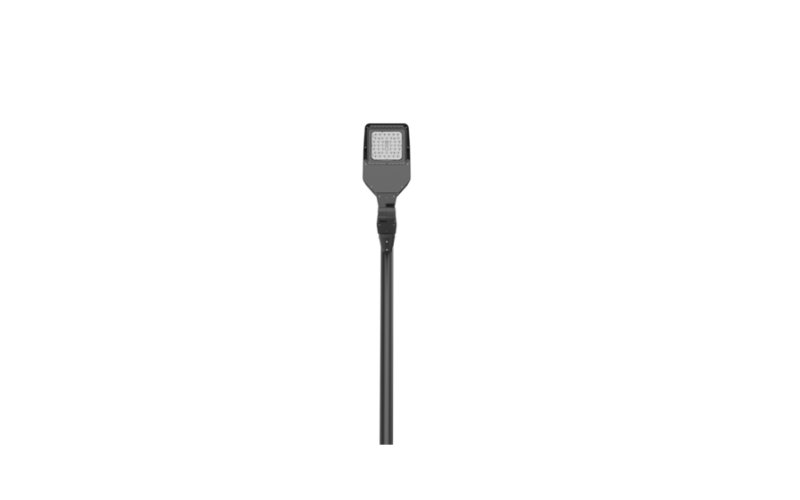

OFD-S. OptiForm Floodlighting Small.
 Configure
 Add to project
DESCRIPTION
Gardco OptiForm Flood is a low-profile, lightweight luminaire designed to deliver aesthetics, flexibility, and savings for campuses, retail and hospitality, and public spaces. With a variety of adjustable mountings and advanced optics, it provides efficient, uniform illumination over a tilt range of 0-80 degrees. Engineered with integral controls options and Service Tag, OptiForm reduces energy and maintenance costs. Whether you need to highlight key areas or cover expansive zones, choose OptiForm for optimal performance.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 10.9”
    L: 18.5”
    H: 2.5"
  • Light Source
    LED
  • CCT/Color
    2700K3000K4000K5000K
  • CRI
    80 70
  • Watt(Approx)
    42 W54 W63 W103 W139 W
  • Lumens(Approx)
    7557 Lm9771 Lm11384 Lm17485 Lm22309 Lm
  • Optics
    DirectMediumFloodWide FloodAsymmetric/Wash
  • Adjustable
    Adjustable
  • Dimming
    Dim to 3-10%0-10VDALI
  • Controls/Network
    Integral Sensor
  • Power/Voltage
    IntegralUNV 120-277V120V208V220-240V277VUNC 347-480V347V480V
  • Integral Emergency
  • Lumen Maintenance
    102000 h
  • Certificates
    UL/CUL
  • Environment
    IP66
  • Mounting Type
    Pole/Post TopWall SurfaceWall Arm/CantileverTrunnionSlip Fitter
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
