Focal Point (Legrand)
DLIA-FC. Lia® Facet DECORATIVE ACOUSTIC LED PENDANT.
Configure
Add to project
RESOURCES
DESCRIPTION
Design

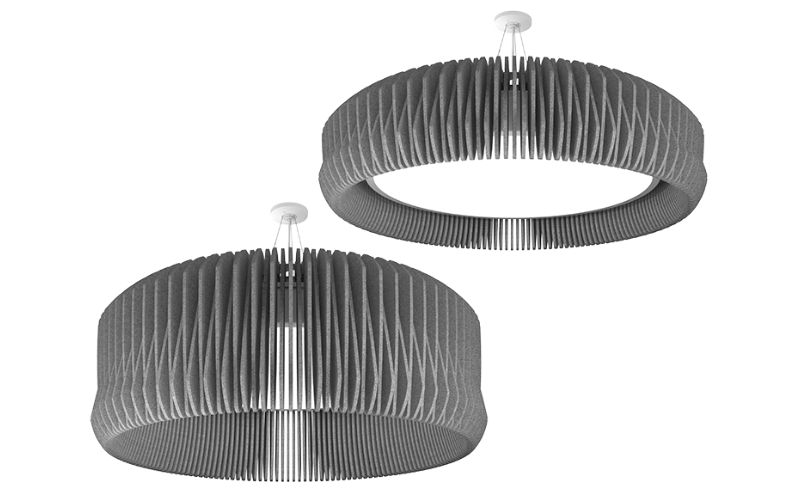

A decorative acoustic pendant featuring crisscrossing PET felt fins that give it a multifaceted shape.
Optional two-tone acoustic shade.
Companion to Lia Curve and Lia Cloche.
Nominal 3' and 4' diameters, and heights of 12" and 18".
Cord or fixed stem mounting option available.
Coordinate housing and canopy paint color.
Acoustic material is available in a wide color palette, ranging from neutral to bold, to provide design flexibility and personalization for any project.
Performance
Lumen outputs from 2,000lm to 9,000lm direct / 1,000lm to 5,000lm indirect make the luminaire suitable for a variety of applications.
Convex textured lens design ensures evenly illuminated diffuser and comfortable illumination.
Acoustic material is made of 100% polyester containing up to 50% of recycled plastic bottles (PET). Declare certified, LBC Red List Free.
ASTM E-84 Class A/ CAN ULC S102 fire rating and moisture resistant.
Application

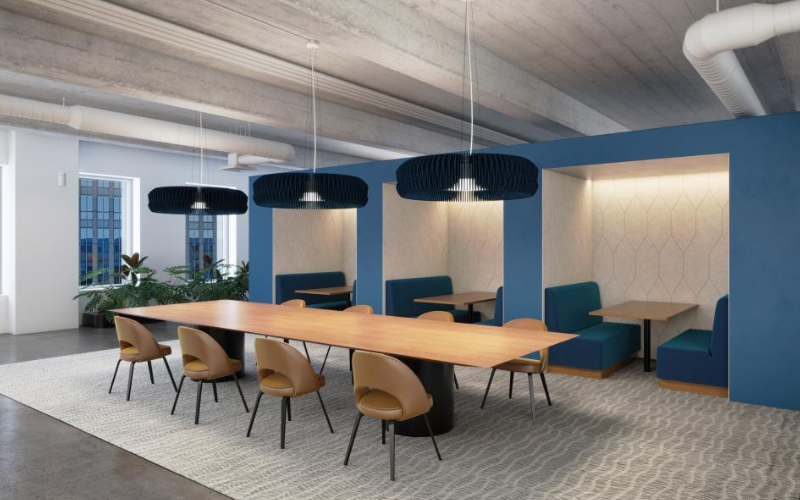

Ideal for environments where striking visuals and sound dampening are desired, such as collaboration hubs, gathering points, entrance lobbies, or hospitality areas.
Makes a statement as a single pendant or clustered.
A decorative acoustic pendant featuring crisscrossing PET felt fins that give it a multifaceted shape.
Optional two-tone acoustic shade.
Companion to Lia Curve and Lia Cloche.
Nominal 3' and 4' diameters, and heights of 12" and 18".
Cord or fixed stem mounting option available.
Coordinate housing and canopy paint color.
Acoustic material is available in a wide color palette, ranging from neutral to bold, to provide design flexibility and personalization for any project.
Performance
Lumen outputs from 2,000lm to 9,000lm direct / 1,000lm to 5,000lm indirect make the luminaire suitable for a variety of applications.
Convex textured lens design ensures evenly illuminated diffuser and comfortable illumination.
Acoustic material is made of 100% polyester containing up to 50% of recycled plastic bottles (PET). Declare certified, LBC Red List Free.
ASTM E-84 Class A/ CAN ULC S102 fire rating and moisture resistant.
Application
Ideal for environments where striking visuals and sound dampening are desired, such as collaboration hubs, gathering points, entrance lobbies, or hospitality areas.
Makes a statement as a single pendant or clustered.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 35.6"46.49"L: 35.6"46.49"H: 11.25"17.25"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 90
- Watt(Approx)7 W13.5 W29.8 W20.8 W27.6 W33.6 W46.1 W65.4 W72.2 W140.7 W140.3 W
- Lumens(Approx)1000 Lm2000 Lm3000 Lm5000 Lm4000 Lm7000 Lm9000 Lm40000 Lm
- OpticsDirectDirect/IndirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10VLutron Hi-lume EcoSystem (LDE1)
- Controls/NetworkEthernet
- Power/VoltageIntegralPoEUNV 120-277V
- Integral Emergency
- Lumen Maintenance54000 h
- CertificatesUL/CUL
- EnvironmentAcoustic AbsorptionDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeDLIA-FC
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
