DLIA-CLO. Lia® Cloche DECORATIVE ACOUSTIC LED PENDANT.
Configure
Add to project
RESOURCES
DESCRIPTION
Design

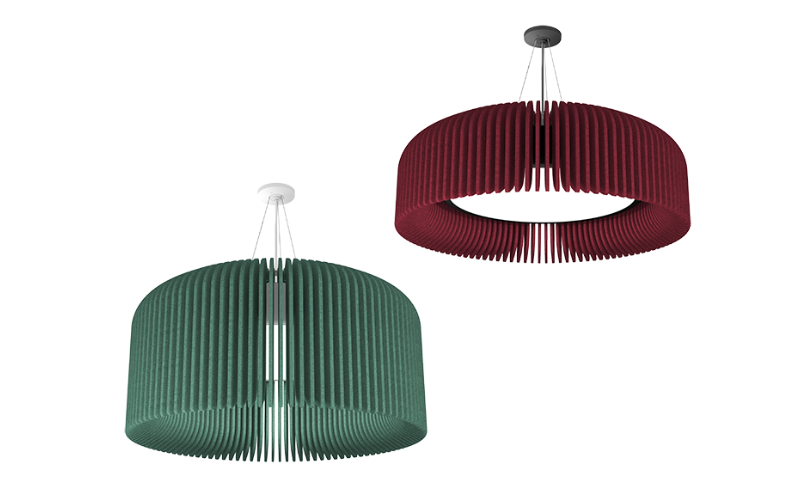

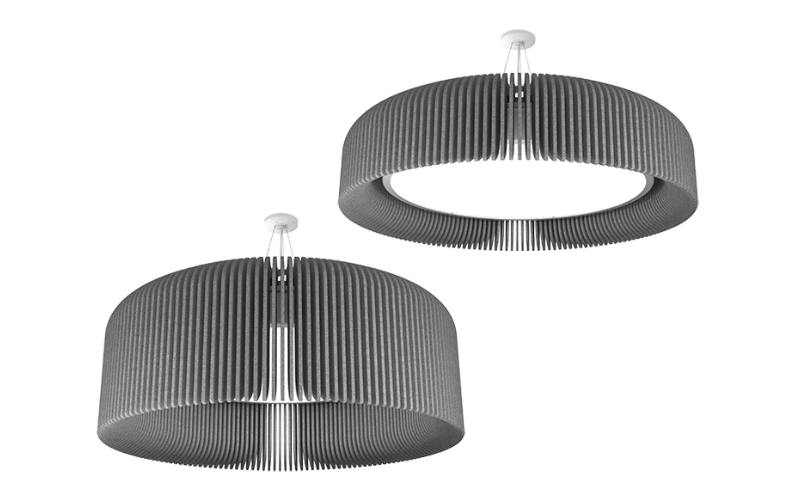

A decorative acoustic pendant featuring a soft bell shape with a classic rounded crown and gently curving PET felt fins.
Companion to Lia Curve and Lia Facet.
Nominal 3' and 4' diameters, and heights of 12" and 18".
Cord or fixed stem mounting option available.
Coordinate housing and canopy paint color.
Acoustic material is available in a wide color palette, ranging from neutral to bold, to provide design flexibility and personalization for any project.
Performance
Lumen outputs from 2,000lm to 9,000lm direct / 1,000lm to 5,000lm indirect make the luminaire suitable for a variety of applications.
Convex textured lens design ensures evenly illuminated diffuser and comfortable illumination.
Acoustic material is made of 100% polyester containing up to 50% of recycled plastic bottles (PET). Declare certified, LBC Red List Free.
ASTM E-84 Class A/ CAN ULC S102 fire rating and moisture resistant.
Application

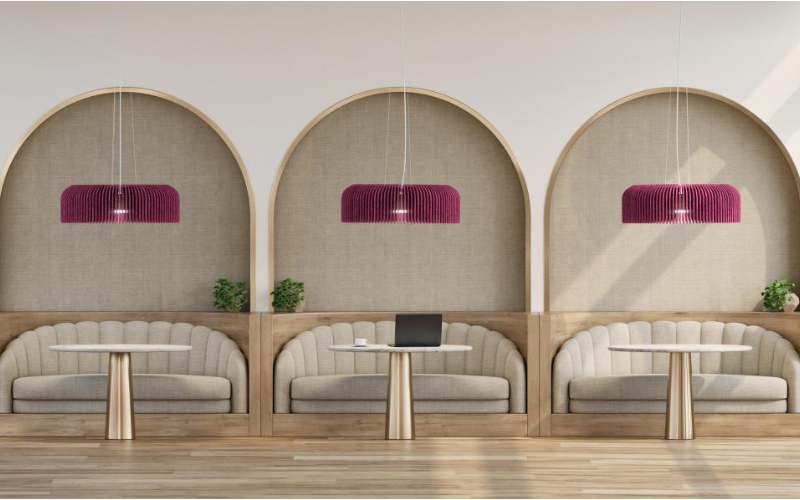

Ideal for environments where striking visuals and sound dampening are desired, such as collaboration hubs, gathering points, entrance lobbies, or hospitality areas.
Makes a statement as a single pendant or clustered.
A decorative acoustic pendant featuring a soft bell shape with a classic rounded crown and gently curving PET felt fins.
Companion to Lia Curve and Lia Facet.
Nominal 3' and 4' diameters, and heights of 12" and 18".
Cord or fixed stem mounting option available.
Coordinate housing and canopy paint color.
Acoustic material is available in a wide color palette, ranging from neutral to bold, to provide design flexibility and personalization for any project.
Performance
Lumen outputs from 2,000lm to 9,000lm direct / 1,000lm to 5,000lm indirect make the luminaire suitable for a variety of applications.
Convex textured lens design ensures evenly illuminated diffuser and comfortable illumination.
Acoustic material is made of 100% polyester containing up to 50% of recycled plastic bottles (PET). Declare certified, LBC Red List Free.
ASTM E-84 Class A/ CAN ULC S102 fire rating and moisture resistant.
Application
Ideal for environments where striking visuals and sound dampening are desired, such as collaboration hubs, gathering points, entrance lobbies, or hospitality areas.
Makes a statement as a single pendant or clustered.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 35.6"46.49"L: 35.6"46.49"H: 11.25"17.25"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 90
- Watt(Approx)7 W13.5 W29.8 W20.8 W27.6 W33.6 W46.1 W65.4 W72.2 W140.7 W140.3 W
- Lumens(Approx)1000 Lm2000 Lm3000 Lm5000 Lm4000 Lm7000 Lm9000 Lm40000 Lm
- OpticsDirectDirect/IndirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10VLutron Hi-lume EcoSystem (LDE1)
- Controls/NetworkEthernet
- Power/VoltageIntegralPoEUNV 120-277V
- Integral Emergency
- Lumen Maintenance54000 h
- CertificatesUL/CUL
- EnvironmentAcoustic AbsorptionDamp
- Mounting TypePendant
- Housing
- Housing Depth
